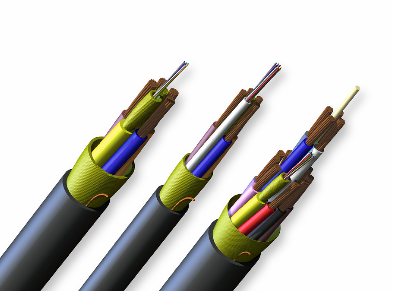

ActiFi™ Composite Cable, Loose Tube, Indoor/Outdoor, FREEDM® Riser 4 F, 2 Cu Conductor, 12AWG

ActiFi™ Composite Cable, Loose Tube, Indoor/Outdoor, FREEDM® Riser 4 F, 2 Cu Conductor, 12AWG

ActiFi™ Composite FREEDM® Cables provide the ultimate solution for indoor/outdoor remote powering in applications such as distributed antenna systems, optical networks, small cells and more. The design uses a 4-fiber cable with 2 copper conductors rated at 300 VAC. These cables are suitable for use with Digital Electricity™ and +/-190VDC installations in accordance with NEC Article 830.15. They may also be used with low-voltage installations in accordance with NEC Article 725.

ActiFi™ Composite FREEDM® Cables also provide a time- and cost-saving solution for installations requiring remotely powered equipment. By integrating copper and fiber in one cable, composite cables eliminate the need to install separate power and fiber cables. This saves installation time, labor costs and duct or tray space. This compact and versatile design is available with an interlocking armor option for additional protection where conduit may not be feasible.

Features and Benefits

12, 14, 16, or 20 AWG copper conductors

Power transmission with flexibility in design

2, 4, 6, 8, 12 or 24 ClearCurve® ZBL or SMF-28® Ultra fibers

Reliable performance in challenging routes

Individual fibers

Easily accessible for splicing, bundled for independent routing

Mutual capacitance between adjacent conductors

<50 pF/ft

2-in-1 composite cable design

One cable meets power and signal needs

Conductor color code

Same as Telcordia color code

Conductor insulation material and thickness

PVC insulation, thickness varies depending on AWG size
