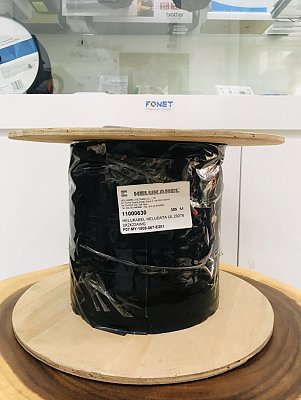

Cáp tín hiệu RS485 HELUKABEL HELUDATA UL 20276 2X2X22AWG

Ứng dụng:

• Control Engineering
• Industrial Electronics
• Computers and Office Machines

NOTES

• RS-485: It is defined by EIA (USA Electronic Industry Association) as a two
  serial communication standard and more correctly named as EIA/TIA-485.
  Communication systems based on RS-485 communicate digital information over
  twisted pair wire from transmitters to receivers. Devices can be apart from each
  other up to 1220 meter without any repeaters and 32 RS-485 transceivers (32 drivers
  32 receivers) can occupy a bus and communicate at rate from 100Kbps (at 1200
  m) up to 10Mbps (at 12 m) varing by cable length. This systems utilize balanced
  outputs and differential inputs. As a result, they provide better noise immunity than
  single-ended systems such as RS 232. Thus links using RS-485 operate over longer
  distance at higher speed than links using RS 232. RS-485 can be used in two and
  four-wire networked systems and tri-state capabilities of RS-485 transmitters enable
  multiple transceivers to be connected to a two-wire multidrop bus. Also fourwire
  systems can be used master node driver to be connected to all slave receivers and
  all slave drivers to be connected to master receiver.
