Cáp tín hiệu 18AWG ~ 1.0mm2 SECURITY ALARM (COMMS) Cable, SACS Series

P/N: SACS1P18L-RD

(0) Bình luận

Thông tin chung:

1Pr x 18 AWG, Security Alarm Cable, Stranded BC, Shielded, LSZH, Red

Liên hệ ngay

0909.039.539

Chia sẻ

Cáp âm thanh, cáp điều khiển Draka (Ý), 16awg, 18awg, 20awg, 22awg, 23awg, 24awg. FONET chuyên cung cấp cáp điều khiển cho công trình, dự án tất cả các sản phẩm công ty chúng tôi cung cấp đều là hàng chính hãng và có đầy đủ giấy tờ CO, CQ. Thời gian bảo hành sản phẩm theo tiêu chuẩn của hãng.

Application

Security, Intercom, Broadcast, Sound, Audio Systems

Fire rating

PVC IEC 60332-1, NEC A T SPLR, CMR
LSZH IEC 61034, IEC 60754-1&2, IEC 60332-1

CONSTRUCTION
Conductor	Grade A Bare Copper, Stranded
Operating Voltage	300V
Insulation	PVC
Insulation colour	1 - Black, 2 - Red, 3 - White, 4 - Green
1st Screen	100% Overall Aluminum Foil Screen
Sheath	PVC-CMR, PE or LSZH with Ripcord
Sheath colour	PVC-CMR or LSZH Grey; PE Black
Rated temperature	Up to 75Â°C

CABLE DIMENSION
Conductor Size	Conductor Diameter (mm)	No of Pairs	Insulation Diameter (MM)	OD (mm)
12 AWG	19*0.47	1 Pair	0.3	7.15
		2 Pairs		7.80
14 AWG	19*0.37	1 Pair	0.3	6.19
		2 Pairs		7.56
16 AWG	19*0.29	1 Pair	0.25	4.92
		2 Pairs		5.73
18 AWG	7*0.39	1 Pair	0.25	4.33
		2 Pairs		5.02
20 AWG	7*0.31	1 Pair	0.20	3.72
		2 Pairs	0.20	4.31
22 AWG	7*0.25	1 Pair	0.20	3.34
		2 Pairs		3.90

ORDERING INFORMATION
SACS 12-22 AWG part numbers are made up using the table below.The part number starts with SACS to denote that it is a SACS cable. The following number shows the number of pairing and the last 2 numbers signiï¬es the AWG. Any letter behind would describe the sheath type. Example of a SACS part number- SACS1P22LThe above example describes an SACS cable with 1 pairing, 22 AWG. Sheath type LSZH.

SACU	X	XX	X
SACU	PAIRING	AWG	SHEATH
	1P â€“ 1 Pair 2P - 2 Pairs	12 - 12 AWG 14 - 14 AWG 16 - 16 AWG 18 - 18 AWG 20 - 20 AWG 22 - 22 AWG	(nil) - PVC-CMR E - PE L- LSZH

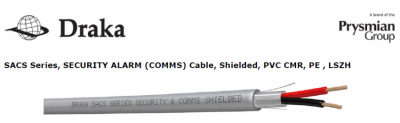

SECURITY & COMMS CABLE, SACS SERIES

Shielded, PVC CMR, PE, LSZH

Application

Security, Intercom, Broadcast, Sound, Audio Systems

Fire rating

PVC IEC 60332-1, NEC A T SPLR, CMR
LSZH IEC 61034, IEC 60754-1&2, IEC 60332-1

CONSTRUCTION
Conductor	Grade A Bare Copper, Stranded
Operating Voltage	300V
Insulation	PVC
Insulation colour	1 - Black, 2 - Red, 3 - White, 4 - Green
1st Screen	100% Overall Aluminum Foil Screen
Sheath	PVC-CMR, PE or LSZH with Ripcord
Sheath colour	PVC-CMR or LSZH Grey; PE Black
Rated temperature	Up to 75Â°C

CABLE DIMENSION
Conductor Size	Conductor Diameter (mm)	No of Pairs	Insulation Diameter (MM)	OD (mm)
12 AWG	19*0.47	1 Pair	0.3	7.15
		2 Pairs		7.80
14 AWG	19*0.37	1 Pair	0.3	6.19
		2 Pairs		7.56
16 AWG	19*0.29	1 Pair	0.25	4.92
		2 Pairs		5.73
18 AWG	7*0.39	1 Pair	0.25	4.33
		2 Pairs		5.02
20 AWG	7*0.31	1 Pair	0.20	3.72
		2 Pairs	0.20	4.31
22 AWG	7*0.25	1 Pair	0.20	3.34
		2 Pairs		3.90

ORDERING INFORMATION
SACS 12-22 AWG part numbers are made up using the table below.The part number starts with SACS to denote that it is a SACS cable. The following number shows the number of pairing and the last 2 numbers signiï¬es the AWG. Any letter behind would describe the sheath type. Example of a SACS part number- SACS1P22LThe above example describes an SACS cable with 1 pairing, 22 AWG. Sheath type LSZH.

SACU	X	XX	X
SACU	PAIRING	AWG	SHEATH
	1P â€“ 1 Pair 2P - 2 Pairs	12 - 12 AWG 14 - 14 AWG 16 - 16 AWG 18 - 18 AWG 20 - 20 AWG 22 - 22 AWG	(nil) - PVC-CMR E - PE L- LSZH
