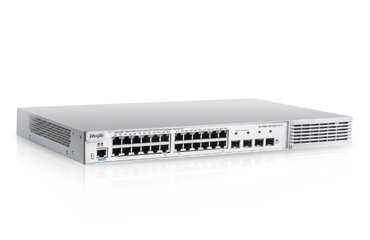

Thiết bị chuyển mạch switch XS-S1960- 24GT4SFP-H

P/N: XS-S1960- 24GT4SFP-H

(0) Bình luận

Thông tin chung:

Thiết bị Switch quản trị trên Ruijie Cloud,
24 cổng 10/100/1000BASE-T,
4 cổng 1G SFP (non-combo);
Tích hợp sẵn Ruijie Cloud, không giới hạn thời gian,

Liên hệ ngay

0909.039.539

Chia sẻ

XS-S1960 Switch Series is the newest access switch series for SMB market. XS-S1960-H Series Switches are fixed-configuration, Gigabit Ethernet switches that provide enterprise-class access switching for branch offices, the switches are managed switches offer advanced Layer 2 and basic Layer 3 features as well as High-power PoE Technology. The switches adopt new web interface and can be managed at the Ruijie Cloud platform, provides easy device onboarding, configuration, monitoring, and troubleshooting

Cloud Managed Switch, 24 10/100/1000BASE-T ports, 4 1G SFP ports (non-combo); Bundled with Ruijie Cloud Service lifetime license

Product Model	XS-S1960-24GT4SFP-H
Ports	24 10/100/1000BASE-T
	ports
	4 1G SFP ports (noncombo)
Fan Slots	Fanless
Management Ports	1 console port
Switching Capacity	56Gbps
Packet Forwarding Rate	42Mpps
Port Buffer	1.5MB
ARP Table	1,000
MAC Address	Up to 16K
Routing Entries	500
IP Host Entries (IPv4/IPv6)	500 (IPv4/IPv6)
ACL Entries	Up to 1,500
QinQ	Basic QinQ, Flexible QinQ, 1:1 VLAN switching
Link Aggregation	AP, LACP, Flow balance
Maximum Aggregation Port	Up to 128
(AP)	Up to 128
Multicast	IGMP v1/v2 snooping, IGMP SGVL/IVGL, IGMP filter, IGMP fast leave
EEE Format	Support IEEE 802.3az standard
Layer 3 Features	IPv4 static routing, IPv6 static routing, RIP, RIPng, ARP proxy, Neighbor Discovery
Layer 3 Protocols (IPv4)	Static routing, RIP, RIPng
IPv4 Features	Ping, Traceroute
