Thiết bị tường lửa Fortinet Fortigate-51E Network Security Appliance

P/N: FG-51E

(0) Bình luận

Thông tin chung:

7 x GE RJ45 ports (Including 2 x WAN port, 5 x Switch ports), 32GB SSD onboard storage, Max managed FortiAPs (Total / Tunnel) 10 / 5

Liên hệ ngay

0909.039.539

Chia sẻ

Overview:

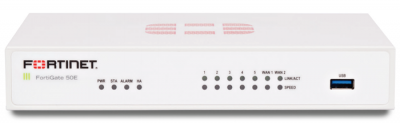

The FortiGate/FortiWiFi 50/51E are compact, cost effective, all-in-one security appliances that deliver Fortinet’s Connected UTM. Ideal for small business, remote, customer premise equipment (CPE) and retail networks, these appliances offer the network security, connectivity and performance you need.

High Performance Network Security

Built on the foundation FortiOS 5, the FortiGate/FortiWiFi 50/51E series provides an integrated set of essential security technologies to protect all of your applications and data. You get advanced threat protection, including firewall, application control, advanced threat protection, IPS, VPN, and web filtering, all from one device that’s easy to deploy and manage. With our FortiGuard® security subscription services you’ll have automated protection against today’s sophisticated threats.

Advanced Features

The FortiGate/FortiWiFi 50/51E offers beyond the industry’s best firewall with the latest in Advanced Threat Protection including Sandboxing and anti-bot protection, Feature Select Options for simplifying configurations and deployments, and Contextual Visibility for enhanced reporting and management.

VDOMs on the FortiGate/FortiWiFi 50/51E let you segment networks to enable guest and employee access, or protect things like cardholder data. You get the flexibility to match your business needs and meet compliance standards like PCI and HIPAA.

With 32 GB of robust internal storage, the FortiGate/FortiWiFi 51E allows you to implement integrated WAN optimization and web caching to improve user productive when securely accessing remote applications and document.

Highlights

Firewall Performance	IPS Performance	Interfaces
2.5 Gbps	800 Mbps	Multiple GE RJ45

Features & Benefits

High performance UTM — firewall, VPN, IPS, application control, web filtering, antivirus, antispam, DLP and more
Runs on FortiOS 5 — the most powerful security operating system in the world delivers more protection for fighting advanced threats and visibility with deep contextual information
Reliable internal storage for logging, reporting, web caching and WAN Optimization

Specifications:

	FG-50E	FWF-50E	FWF-50E-2R	FG-51E	FWF-51E	FG-52E
Hardware Specifications
GE RJ45 Switch Ports	5	5	5	5	5	5
GE RJ45 WAN Ports	2	2	2	2	2	2
USB Ports	1	1	1	1	1	1
Console (RJ45)	1	1	1	1	1	1
Wireless Interface	—	802.11 a/b/g/n	Dual Radio, 802.11a/b/g/n/ac	—	802.11 a/b/g/n	—
Internal Storage	—	—	—	32 GB	32 GB	2x 32 GB
System Performance
Firewall Throughput	2.5 Gbps
Firewall Latency (64 byte UDP packets)	180 μs
Firewall Throughput (Packets Per Second)	375 Kpps
Concurrent Sessions (TCP)	1.8 Million
New Sessions/Second (TCP)	21,000
Firewall Policies	5,000
IPsec VPN Throughput(512 byte packets)	200 Mbps
Gateway-to-Gateway IPsecVPN Tunnels	200
Client-to-Gateway IPsecVPN Tunnels	250
SSL-VPN Throughput	100 Mbps
Concurrent SSL-VPN Users(Recommended Maximum)	80
IPS Throughput (HTTP / Enterprise Mix) 1	800 / 270 Mbps
SSL Inspection Throughput 2	250 Mbps
Application Control Throughput 3	350 Mbps
NGFW Throughput 4	220 Mbps
Threat Protection Throughput 5	160 Mbps
CAPWAP Throughput 6	1.9 Gbps
Virtual Domains (Default / Maximum)	5 / 5
Maximum Number of FortiAPs (Total / Tunnel Mode)	10 / 5
Maximum Number ofFortiTokens	100
Maximum Number ofRegistered FortiClients	200
High Availability Configurations	Active/Active, Active/Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.44 x 8.52 x 5.5
Height x Width x Length (mm)	36.5 x 216 x 140
Weight	2.015 lbs (0.914 kg)	2.041 lbs (0.926 kg)	2.38 lbs (1.08 kg)	2.04 lbs (0.925 kg)	2.04 lbs (0.925 kg)	2.04 lbs (0.925 kg)
Form Factor	Desktop
Environment
Power Required	100–240V AC, 60–50 Hz (External DC Power Adapter)
Maximum Current	100 V / 0.6 A, 240 V / 0.4 A					110 V / 0.32 A, 220 V / 0.57 A
Power Consumption (Average / Maximum)	18 / 15 W	18 / 22 W	22.1 / 26.5 W	16 / 20 W	19 / 23 W	22.5 / 27 W
Heat Dissipation	62 BTU/h	75 BTU/h	90 BTU/h	67 BTU/h	79 BTU/h	92 BTU/h
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	20–90% non-condensing
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance
Regulatory Compliance	FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
Certifications
	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN

Note: All performance values are "up to" and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1.
1. IPS performance is measured using 1 Mbyte HTTP and Enterprise Traffic Mix.
2. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES256-SHA.
3. Application Control performance is measured with 64 Kbytes HTTP traffic.
4. NGFW performance is measured with IPS and Application Control enabled, based on Enterprise Traffic Mix.
5. Threat Protection performance is measured with IPS and Application Control and Malware protection enabled, based on Enterprise Traffic Mix.
6. CAPWAP performance is based on 1444 byte UDP packets.
