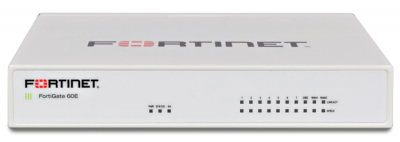

Thiết bị tường lửa Fortinet Fortigate-60E Network Security Appliance

P/N: FG-60E

(0) Bình luận

Thông tin chung:

10 x GE RJ45 ports (including 7 x Internal Ports, 2 x WAN Ports, 1 x DMZ Port)

Liên hệ ngay

0909.039.539

Chia sẻ

Overview:

The Fortinet Enterprise Firewall Solution

The Fortinet Enterprise Firewall Solution delivers end-to-end network security with one platform, one network security operating system and unified policy management with a single pane of glass — for the industry’s best protection against the most advanced security threats and targeted attacks.

One Enterprise Firewall Solution across the Extended Enterprise

The FortiGate family of network appliances represents the industry’s broadest range of enterprise firewall platforms. FortiGate is based on FortiASIC, a purpose-built integrated architecture that provides extremely high throughput and exceptionally low latency, while delivering industry-leading security effectiveness and consolidation which is routinely validated by independent real-world tests. Targeted for distributed enterprises, the FortiGate 60E series contains consolidated security and networking functionality, various connectivity options along with Industry’s best performance in a compact form factor.

Highlights

	Firewall	IPS	NGFW	Threat Protection	Interfaces
		Enterprise Traffic Mix
FG/FWF-60E	3 Gbps	350 Mbps	250 Mbps	180 Mbps	Multiple GE RJ45

Specifications:

	FortiGate 60E	FortiWiFi 60E	FortiGate 61E	FortiWiFi 61E
Hardware Specifications
GE RJ45 WAN Ports	2	2	2	2
GE RJ45 Internal Ports	7	7	7	7
GE RJ45 PoE Ports	–	–	–	–
GE RJ45 DMZ Ports	1	1	1	1
Wireless Interface	–	802.11 a/b/g/n/ac	–	802.11 a/b/g/n/ac
USB Ports	1	1	1	1
Console (RJ45)	1	1	1	1
Internal Storage	–	–	128 GB	128 GB
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	3 / 3 / 3 Gbps
Firewall Latency (64 byte UDP packets)	3 μs
Firewall Throughput (Packets Per Second)	4.5 Mpps
Concurrent Sessions (TCP)	1.3 Million
New Sessions/Second (TCP)	30,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte packets)	2 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	500
SSL-VPN Throughput	150 Mbps
Concurrent SSL-VPN Users (Recommended Maximum)	100
IPS Throughput (HTTP / Enterprise Mix) 1	1,400 / 350 Mbps
SSL Inspection Throughput 2	340 Mbps
Application Control Throughput 3	550 Mbps
NGFW Throughput 4	250 Mbps
Threat Protection Throughput 5	180 Mbps
CAPWAP Throughput 6	1.5 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiAPs (Total / Tunnel Mode)	10 / 5
Maximum Number of FortiTokens	100
Maximum Number of Registered FortiClients	200
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.5 x 8.5 x 6.3
Height x Width x Length (mm)	38 x 216 x 160
Weight	1.9 lbs (0.9 kg)
Form Factor	Desktop
Environment
Power Required	100–240V AC, 50–60 Hz
Maximum Current	110 V / 1.5 A, 220 V / 0.75 A	110 V / 1.5 A, 220 V / 0.75 A	115V AC / 0.9A, 230V AC / 0.6A	115V AC / 0.9A, 230V AC / 0.6A
Power Consumption (Average / Maximum)	11.7 / 14 W	12.6 / 15.2 W	11.9 / 14.3 W	13 / 16 W
Heat Dissipation	40 BTU/h	52 BTU/h	49 BTU/h	55 BTU/h
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	20–90% non-condensing
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance
	FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
Certifications
	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN

Note: All performance values are "up to" and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1.
1. IPS performance is measured using 1 Mbyte HTTP and Enterprise Traffic Mix.
2. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES256-SHA.
3. Application Control performance is measured with 64 Kbytes HTTP traffic.
4. NGFW performance is measured with IPS and Application Control enabled, based on Enterprise Traffic Mix.
5. Threat Protection performance is measured with IPS and Application Control and Malware protection enabled, based on Enterprise Traffic Mix.
6. CAPWAP performance is based on 1444 byte UDP packets.
* Maximum loading on each PoE/+ port is 30 W (802.3at).
