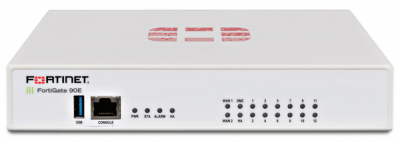

Thiết bị tường lửa Fortinet Fortigate-90E Plus 3-Year 8x5 FortiCare and FortiGuard Unified (UTM) Protection

P/N: FG-90E-BDL-900-36

(0) Bình luận

Thông tin chung:

16 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 x HA port, 12 x switch ports). Max managed FortiAPs (Total / Tunnel) 32 / 16
Plus 3-Year 8x5 FortiCare and FortiGuard Unified (UTM) Protection

Liên hệ ngay

0909.039.539

Chia sẻ

Overview:

The Fortinet Enterprise Firewall Solution

The Fortinet Enterprise Firewall Solution delivers end-to-end network security with one platform, one network security operating system and unified policy management with a single pane of glass — for the industry’s best protection against the most advanced security threats and targeted attacks.

Security Fabric Integration

Specifications:

	FortiGate 90E	FortiGate 91E
Hardware Specifications
GE RJ45 Ports	16	16
USB Ports	1	1
Console (RJ45)	1	1
Internal Storage	-	128 GB
System Performance
Firewall Throughput	4.0 Gbps
Firewall Latency (64 byte UDP packets)	182 μs
Firewall Throughput (Packets Per Second)	375 Kpps
Concurrent Sessions (TCP)	1.2 Million
New Sessions/Second (TCP)	27,500
Firewall Policies	5,000
IPsec VPN Throughput (512 byte packets)	160 Mbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	1,000
SSL-VPN Throughput	95 Mbps
Concurrent SSL-VPN Users (Recommended Maximum)	200
IPS Throughput (HTTP / Enterprise Mix) 1	950 / 440 Mbps
SSL Inspection Throughput 2	300 Mbps
Application Control Throughput 3	450 Mbps
NGFW Throughput 4	350 Mbps
Threat Protection Throughput 5	210 Mbps
CAPWAP Throughput 6	2.2 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiAPs (Total / Tunnel Mode)	32 / 16
Maximum Number of FortiTokens	100
Maximum Number of Registered FortiClients	200
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.7 x 8.5 x 7.0
Height x Width x Length (mm)	43.9 x 216 x 178.5
Weight	2.884 lbs (1.308 kg)	2.917 lbs (1.323 kg)
Form Factor	Desktop
Environment
Power Required	100–240V AC, 60–50 Hz (External DC Power Adapter)
Maximum Current	100V AC / 1.5A	240V AC / 0.75A
Power Consumption (Average / Maximum)	22.8 W / 27.36 W	23.7 W / 28.44 W
Heat Dissipation	77.7936 BTU/h	80.8644 BTU/h
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	20–90% non-condensing
Noise Level	38.8 at 25°C @ 1m (Maximum: 40 dB at 25°C)
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance
Safety	FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
Certifications
	ICSA Labs: Firewall, IPSec, IPS, Antivirus, SSL VPN; USGv6/IPv6

Note: All performance values are "up to" and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1.
1. IPS performance is measured using 1 Mbyte HTTP and Enterprise Traffic Mix.
2. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES256-SHA.
3. Application Control performance is measured with 64 Kbytes HTTP traffic.
4. NGFW performance is measured with IPS and Application Control enabled, based on Enterprise Traffic Mix.
5. Threat Protection performance is measured with IPS and Application Control and Malware protection enabled, based on Enterprise Traffic Mix.
6. CAPWAP performance is based on 1444 byte UDP packets
