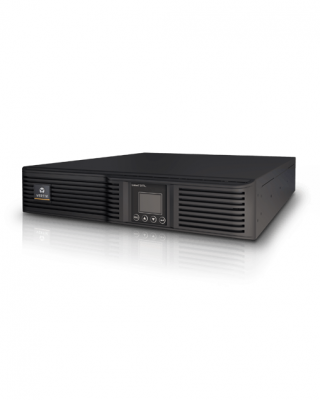

UPS Emerson Liebert GXT4 - RT230 (TRUE ONLINE) GXT4-2000RT230

P/N: GXT4-2000RT230

(0) Bình luận

Thông tin chung:

Liên hệ ngay

0909.039.539

Chia sẻ

Benefits

Zero transfer time, provides highest level of electrical protection with seamless flow of power.

Highest level of protection available in this UPS capacity range.

Energy-savings operation modes

Fast, easy serviceability

Intelligent-ready networking

Power factor correction

Frequency conversion Internal automatic bypass to protect against adverse conditions

Imiprove availability by controling power to multiple devices.

Manual bypass capability

Support for up to six external battery cabinets for extended run-time

Features

On-Line, double conversion design.

Eco mode optional operation.

Replaceable, hot swappable batteries.

Rack or tower configuration.

Independent programmable pair of outlets (700-3000VA models on lP.)

Rack mount kit & batteries are standard in all models.

Web / SNMP communications card included as standard in 5-10kVA models.

Energy Star qualified model Intelligent-ready networking

MODEL NUMBER	GXT4-2000RT230
Capacity (VA/W)	2000VA/1800W
Net Weight, kg. (lb.)	25.5 (56.1)
Dimensions – W x D x H, mm. (in.)	85 (2U) x 430 x 497
On-Line Input Voltage	230VAC nominal; variable based on output load
On-Line Frequency	40Hz ~ 70Hz; Auto Sensing
Online Frequency Range (50Hz/60Hz)	47 ~ 53 Hz or 57 ~ 63 Hz (Synchronized Range)
Output Voltage (Utility Power Normal)	200/208/220/230/240VAC (user configurable); ±3%
Output Voltage (Battery Operation)	230VAC ±5%
On-Battery Wave Form	Stepped sinewave
Output Frequency Battery Mode	50Hz (60Hz) ±1Hz
Battery Type – VDC x Ah x Quantity	4 x 12V x 9.0Ah
Typical Recharge Time	4 hours
Operating Temperature, °C (°F)	0 to 40
Storage Temperature, °C (°F)	-15 to 40
Operating /Storage Relative Humidity	20-90 % RH @ 0- 40°C (non-condensing)
