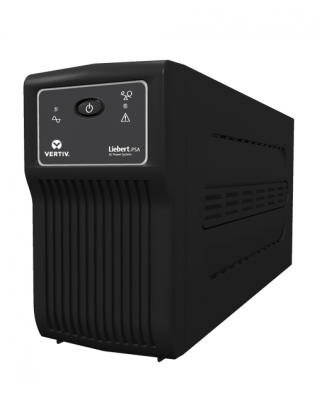

UPS Emerson Liebert PSA - AVR PSA650MT3-230

P/N: PSA650MT3-230

(0) Bình luận

Thông tin chung:

The Liebert® PSA is an economical, environmentally-friendly line-interactive UPS that offers full- featured power protection for small ofﬁce computers and electronic equipment.

Liên hệ ngay

0909.039.539

Chia sẻ

Features

Wide input voltage window and buck / boost operation corrects poor input power without a need to use precious battery power.

3-6 minutes runtime at full load

USB communication

Mini Tower Design

3 to 6 battery-backed outlets

1 to 2 surge-only outlets

RJ-45 Data line protection

User replaceable batteries

Support Multilink shutdown software

Flexibility

Available in four sizes: 500, 650, 1000 and 1500VA; 120VAC or 230VAC

Three to six battery-backed UPS outlets, depending on model size

One to two surge-only outlets, differentiated by color

Reliability

Up to five minutes of battery backup time at full load

Full sequenced battery testing to ensure batteries are available when needed

Advance early warning of UPS shutdown

Lightning and surge protection (TVSS)

RJ-45 port for data line surge protection

USB communications / shutdown software and cable included
User-replaceable batteries

Total Cost of Ownership

Two-year replace or repair warranty

Environment-friendly

Full RoHS R6 compliance

The Liebert PSA is Ideally Suited for

Professional Desktop PCs

Professional Workstations

Small Routers, Bridges and Hubs

Point-of-sale Terminals

Other Sensitive Electronics

MODEL NUMBER	PSA650MT3-230
Capacity (VA/W)	650/390
Net Weight, kg. (lb.)	5.9
Dimensions – W x D x H, mm. (in.)	95 x 356 x 171
On-Line Input Voltage	160-287VAC
On-Line Frequency	50/60Hz ±5Hz
Online Frequency Range (50Hz/60Hz)	(45 - 55Hz) / (55 - 65Hz)
Output Voltage (Utility Power Normal)	Typical 185-252VAC
Output Voltage (Battery Operation)	230VAC ±5%
On-Battery Wave Form	Stepped sinewave
Output Frequency Battery Mode	50Hz (60Hz) ±1Hz
Battery Type – VDC x Ah x Quantity	12V x 7.2Ah x 1
Typical Recharge Time	6-8 hours to 90%
Operating Temperature, °C (°F)	0 to 40
Storage Temperature, °C (°F)	-15 to 40
Operating /Storage Relative Humidity	0 – 90%, non-condensing
