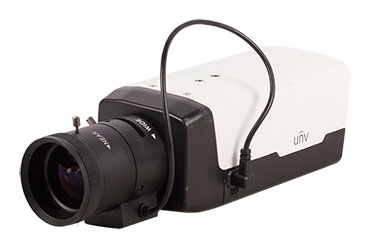

2MP WDR Network Box Camera

P/N: IPC542E-DLC-C

(0) Bình luận

Thông tin chung:

• 1/2.9" progressive scan,CMOS
• Up to 1920x1080 resolution,30fps
• Alarm I/O,Audio I/O
• H.265,ONVIF
• –20°C ~ +60°C
• AC24V,DC12V,PoE,9.5W Max

Giá tham khảo
11.000.000 đ

0909.039.539

Chia sẻ

Optics

Day/night functionality

Lowlight surveillance

3D DNR (Digital Noise Reduction)

Up to 120 dB WDR(Wide Dynamic Range)

Compression

Triple streams

ROI (Region of Interest)

9:16 corridor mode

Customized OSD

Network

ONVIF Conformance

Structure

AC 24V /DC 12 V/PoE power supply

Wide temperature range: -20°C to 60°C (-4°F to 140°F)

Wide voltage range of ±10%

6 KV surge protection designed for network interface

	IPC542E-DLC-C
Camera
Sensor	1/2.9", 2 megapixel, progressive scan CMOS
Day & Night	Automatically removable IR-cut filter(ICR)
Shutter	Auto/Manual, 1/6~1/100000 s
Min. Illumination	Colour: 0.02 Lux (F1.2, AGC ON) B/W:0.0002 Lux(F1.2, AGC ON)
Lens Mount	C/CS
Iris	DC-Iris/P-Iris，DC 5V (4 Pins)
S/N	>52dB
WDR	120 dB
Video
Max. Resolution	1920 × 1080
Video Compression	H.265, H.264, MJPEG
Frame Rate	1080P (1920×1080): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 8 fps
Video Streaming	Triple
9:16 Corridor Mode	Supported
ROI	Supported
Defog	Digital
HLC	Supported
Evaluative Metering	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
Smart
Behavior Detection	Intrusion, crossing line, motion detection
Exception Detection	Audio detection
Intelligent Identification	Face detection, Defocus, Scene Change
Statistical Analysis	People counting
Audio
Audio Compression	G.711
Two-way audio	Supported
Storage
Edge Storage	Micro SD, up to 128 GB
Network
Protocols	IPv4, IGMP,ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
Compatible Integration	ONVIF, API
Interface
Audio I/O	3.5 mm audio interface
	Input: impedance 35 kΩ; amplitude 2 V [p-p]
	Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O	2 / 1
Serial Port	1 RS485 (support Pelco-D/P)
Network	10M/100M Base-TX Ethernet
Video Output	1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
General
Power	24 V AC, 12 V DC, or PoE (IEEE802.3 af)
	Power consumption: 6.5 W (9.5W with ICR on)
Dimensions (L × W × H)	151.5 x 71 x 65 mm (6.0“ x 2.8“ x 2.6”) (excluding the lens)
Weight	0.48 kg (1.1 lb)
Working Environment	–20°C ~ +60°C (-4°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
