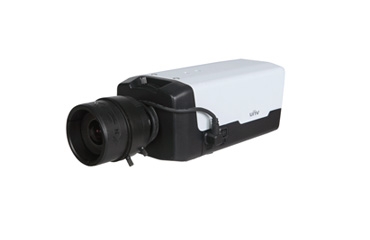

2MP WDR Starlight Network Box Camera
P/N: IPC562E-DUG
(0) Bình luận
Thông tin chung:• 1/1.9" progressive scan CMOS
• Up to 1920 × 1080 resolution, 60fps
• 120dB True WDR
• ABF
• Optical fiber interface
• HLC, 3D DNR, ROI, Corridor Mode, ONVIF
• Motor Zoom/focus ports
• AC24V, DC12V, PoE. Wide voltage range of ±25%
Giá tham khảo
11.000.000 đ
Optics
HD starlight surveillance
Auto day/night functionality
Up to 120 dB WDR(Wide Dynamic Range)
3D DNR (Digital Noise Reduction)
Compression
H.265, H.264, MJPEG
Embedded smart algorithm
Triple streams
ROI (Region of Interest)
9:16 corridor format
Network
Optional network interfaces with Ethernet RJ45 and optical SFP
ONVIF Conformance
Structure
AC 24V /DC 12 V/PoE with uninterruptible power supply
Wide temperature range: -20°C to 60°C (-4°F to 140°F)
Wide voltage range of ±25%
6 KV surge protection designed for network interface
|
Camera |
IPC562E-DUG |
|
Sensor |
1/1.9" CMOS, progressive scan |
|
Day & Night |
Automatically removable IR-cut filter(ICR) |
|
Shutter |
Auto/Manual, 1/6~1/100000 s |
|
Min. Illumination |
Colour: 0.002 Lux (F1.2, AGC ON) B/W:0.0002 Lux(F1.2, AGC ON) |
|
S/N |
>52dB |
|
WDR |
120dB |
|
Lens Mount |
CS |
|
DC-Iris |
DC 4V (4-Pin) |
|
Motor Zoom/focus |
DC 5V (4-Pin) |
|
Video |
|
|
Max. Resolution |
1920 × 1080 |
|
Video Compression |
H.265, H.264, MJPEG |
|
Frame Rate |
1080P (1920×1080): Max. 60 fps; 1080P (1920×1080): Max. 15 fps; 1080P (1920×1080): Max. 60 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max.15 fps 1080P (1920×1080): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max.30 fps |
|
9:16 Corridor Mode |
Supported |
|
ROI |
Supported |
|
HLC |
Supported |
|
Evaluative Metering |
Supported |
|
ABF |
Supported |
|
Defog |
Optical Defog & Digital Defog |
|
Video Streaming |
Triple |
|
OSD |
Up to 8 OSDs |
|
Privacy Mask |
Up to 4 areas |
|
Smart |
|
|
Behavior Detection |
Intrusion, crossing line, motion detection |
|
Exception Detection |
Audio detection |
|
Intelligent Identification |
Face detection, Defocus, Scene Change |
|
Statistical Analysis |
People counting |
|
Audio |
|
|
Audio Compression |
G.711 |
|
Two-way Talking |
Supported |
|
Storage |
|
|
Edge Storage |
Micro SD, up to 128 GB |
|
Network |
|
|
Protocols |
IPv4, IGMP,ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x |
|
Compatible Integration |
ONVIF, API |
|
Interface |
|
|
Audio I/O |
3.5 mm audio interface |
|
Input: impedance 35 kΩ; amplitude 2 V [p-p] |
|
|
Output: impedance 600 Ω; amplitude 2 V [p-p] |
|
|
Alarm I/O |
2 / 1 |
|
Serial Port |
1 RS485 (support Pelco-D/P) |
|
Network |
100M/1000M Base-FX SFP + 100M/1000M Base-TX Ethernet |
|
Video Output |
1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
|
General |
|
|
Power |
24 V AC, 12 V DC, or PoE (IEEE802.3 af) |
|
Power consumption: 4.8W (6.8W with ICR on) |
|
|
Dimensions (L x W x H) |
151.5 x 71 x 65 mm (6.0“ x 2.8“ x 2.6”) (excluding the lens) |
|
Weight |
0.48 kg (1.1 lb) |
|
Working Environment |
–20°C ~ 60°C (-4°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
