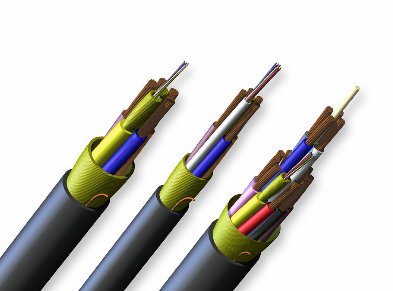

ActiFi™ Composite Cable, Loose Tube, Indoor/Outdoor, FREEDM® Riser 4 F, 2 Cu Conductor, 16AWG

P/N: 004ZTF-21Y01M20

(0) Bình luận

Thông tin chung:

ActiFi™ Composite FREEDM® Cables provide the

ultimate solution for indoor/outdoor remote

powering in applications such as distributed

antenna systems, optical networks, small cells

and more. The design uses a 4-fiber cable with 2

copper conductors rated at 300 VAC. These

cables are suitable for use with Digital

Electricity™ and +/-190VDC installations in

accordance with NEC Article 830.15. They may

also be used with low-voltage installations in

accordance with NEC Article 725.

Liên hệ ngay

0909.039.539

Chia sẻ

ActiFi™ Composite Cable, Loose Tube, Indoor/Outdoor, FREEDM® Riser 4 F, 2 Cu Conductor, 16AWG

ActiFiTM Composite FREEDM® Cables provide theultimate solution for indoor/outdoor remotepowering in applications such as distributedantenna systems, optical networks, small cellsand more. The design uses a 4-fiber cable with 2copper conductors rated at 300 VAC. Thesecables are suitable for use with DigitalElectricityTM and +/-190VDC installations inaccordance with NEC Article 830.15. They mayalso be used with low-voltage installations inaccordance with NEC Article 725.

ActiFiTM Composite FREEDM® Cables also providea time- and cost-saving solution for installationsrequiring remotely powered equipment. Byintegrating copper and fiber in one cable,composite cables eliminate the need to installseparate power and fiber cables. This savesinstallation time, labor costs and duct or trayspace. This compact and versatile design isavailable with an interlocking armor option foradditional protection where conduit may not befeasible.

Features and Benefits

12, 14, 16, or 20 AWG copper conductors

Power transmission with flexibility in design

2, 4, 6, 8, 12 or 24 ClearCurve® ZBL or SMF-28® Ultra fibers

Reliable performance in challenging routes

Individual fibers

Easily accessible for splicing, bundled for independent routing

Mutual capacitance between adjacent conductors

<50 pF/ft

2-in-1 composite cable design

One cable meets power and signal needs

Conductor color code

Same as Telcordia color code

Conductor insulation material and thickness

PVC insulation, thickness varies depending on AWG size

Mechanical Specifications
Min. Bend Radius Installation	91.44 mm (3.6 in)
Min. Bend Radius Operation	60.96 mm (2.4 in)
Nominal Outer Diameter	6.1 mm (0.24 in )
Cable Design
Central Element	Jacketed GRP
Fiber Count	4
Buffer Tube Color Coding	Yellow
Number of Ripcords	1
Outer Jacket Color	Black
Outer Jacket Material	Flame-retardant
Buffer Tube Diameter	1.6 mm (0.06 in)
Conductor	16 AWG
Number of Active Tubes	1
Number of Conductors	2
Number of Tube Positions	1
Fiber Coloring	Blue, Orange, Green, Brown
Fibers per Tube	4
Environmental Conditions
Temperature Range, Installation	0 °C - 60 °C (32 °F - 140 °F)
Temperature Range, Storage	-40 °C - 70 °C (-40 °F - 158 °F)
General Specifications
Fiber Category	SMF-28® Ultra fiber
Ordering Information
Weight	55 kg/km
Optical Characteristics
Fiber Code	Z
Fiber Name	SMF-28® Ultra fiber
Fiber Type	Single-mode
Performance Option Code	01
Maximum Attenuation	0.4 dB/km / 0.4 dB/km / 0.3 dB/km
Typical Attenuation	0.33 / 0.33 / 0.19
Wavelengths	1310 nm / 1383 nm / 1550 nm
Fiber Category	ITU-TG.657.A1
