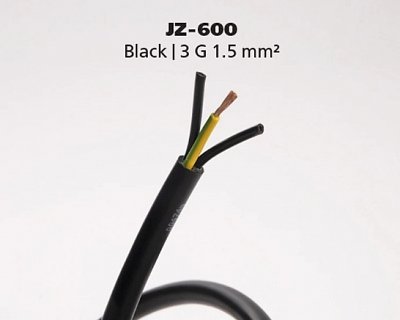

Dây cáp điều khiển HELUKABEL JZ-600 | Black | 3 G 1.5 mm²

Mô Tả Sản Phẩm

Technical Data

Details

Cable Structure

Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
Core insulation: PVC acc. to DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI2)
Core identification acc. to DIN VDE 0293-334, black cores with consecutive labeling in white digits
Protective conductor: starting with 3 cores,
G = with protective conductor GN-YE, in the outer layer,
x = without protective conductor (OZ)
Cores stranded in layers with optimal lay lengths
Outer sheath: PVC acc. to DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (compound type TM2)
Sheath colour: black (RAL 9005)
Length marking: in metres

Properties

resistant to: UV radiation, weathering effects
largely resistant to: oil,
for details, see "Technical Information"
for outdoor use
the materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers

Tests

flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
UV-resistant acc. to DIN EN ISO 4892-2
weather-resistant acc. to DIN EN ISO 4892-2
certifications and approvals:
EAC

Notes

the conductor is metrically (mm²) constructed, AWG numbers are approximated, and are for reference only

Application

Used as a connection and control cable in machine tools, assembly lines and conveyor belts, production lines, in plant construction, heating and air-conditioning technology, in smelters and steel mills. Suitable for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, as well as outdoors (fixed installation). May not be laid directly in soil (suitable for direct burial starting with an outer diameter of 18.0 mm) or water. Primarily used in southern European and Arabic countries, as well as in eastern states.
