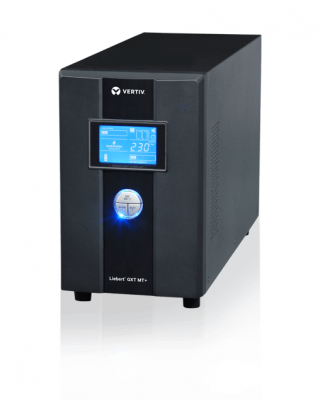

GXT-MT PLUS (On-Line Double Conversion UPS) GXT1000-MTPlus230

P/N: GXT1000-MTPlus230

(0) Bình luận

Thông tin chung:

Liên hệ ngay

0909.039.539

Chia sẻ

Benefits

The Liebert GXT-MT + is ideally suited for:

Small Size Data Center

Telecommunication Equipment

VoIP Small

Office Network

Computer Rooms

Process Automation Equipment

Network Storage Devices

What's in the box?

UPS Module

Battery Connection Cable only with Long Backup models

RS 232 Cable / USB Cable

UPS Monitoring Software (to be downloaded from internet)

User Manual

IEC Output cables x 2

CEE7/7 to IEC-C20 and BS1363 to IEC-C20 input power cord (3KVA model

Features

Double conversion on-line technology

Compact tower design

Standard models and long backup models available

Extended runtime capabilities by building up additional battery resources

Flexible (site specific) battery configuration

Standard model comes with internal battery

Generator-compatible with wide input frequency range (40 to 70 Hz)

0.8 output power factor

Class A electromagnetic interference (EMC)

Ultra wide input voltage range

High input power factor & low THDi

Emergency power off (EPO)

Configurable to energy saving mode (ECO)

LCD display for operational convenience and status / fault information

Multiple AC output interfaces via IEC standard sockets with Programmable output

Remote Monitoring is available through USB / RS232, and optional via dry contacts and SNMP

MODEL NUMBER	GXT1000-MTPlus230
Capacity (VA/W)	1000 VA / 800 W
Net Weight, kg. (lb.)	13
Dimensions – W x D x H, mm. (in.)	397 X 145 X 220 (mm)
On-Line Input Voltage	175 - 300 VAC
On-Line Frequency	50/60Hz ±5Hz
Online Frequency Range (50Hz/60Hz)	47 ~ 53 Hz or 57 ~ 63 Hz (Synchronized Range)
Output Voltage (Utility Power Normal)	Typical 185-252VAC
Output Voltage (Battery Operation)	230VAC ±5%
On-Battery Wave Form	Stepped sinewave
Output Frequency Battery Mode	50Hz (60Hz) ±1Hz
Battery Type – VDC x Ah x Quantity	12 V / 7 AH 3
Typical Recharge Time	4 hours recover to 90%
Operating Temperature, °C (°F)	0 to 40
Storage Temperature, °C (°F)	-15 to 40
Operating /Storage Relative Humidity	20-90 % RH @ 0- 40°C (non-condensing)
