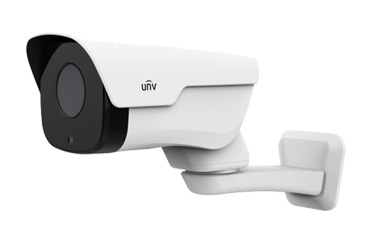

4MP Fixed Lens IR PT Camera
P/N: IPC744SR5-PF40(60)-32G
(0) Bình luận
Thông tin chung:• 1/3" 4MP, progressive scan CMOS
• 2560×1440 resolution, 25fps
• 4mm/6mm optional
• Smart IR, up to 50m IR distance
• H.265, ONVIF
• DC12V, PoE. Wide voltage range of ±25%
• IP66
11.000.000 đ
PTZ
Precision motor with accuracy deviation less than 0.1 degree.
Pan range 250°, tilt range -50° to 50°
Pan speed up to 30°/s, tilt speed up to 10°/s
Optics
Smart IR, up to 50m (164 ft) IR distance
IR anti-reflection window to increase the infrared transmittance
Day/night functionality
Compression
H.265, H.264, MJPEG
Embedded smart algorithm
Triple streams
Customized OSD
Network
ONVIF Conformance
Structure
Support PoE power supply
Wide temperature range: -35°C to +60°C (-31°F to +140°F)
Wide voltage range of ±25%
IP66
|
Camera |
IPC744SR5-PF40-32G |
IPC744SR5-PF60-32G |
|
Sensor |
1/3", 4 megapixel, progressive scan CMOS |
|
|
Lens |
4.0mm@F1.8 |
6.0mm@F1.8 |
|
Shutter |
Auto/Manual, 1/6s ~ 1/100000s |
|
|
Minimum Illumination |
Color: 0.02 Lu× (F1.8, AGC ON) 0 Lux with IR on |
|
|
IR Range |
50m (164 ft) IR range |
|
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
|
S/N |
>55dB |
|
|
WDR |
Digital |
|
|
Noise Reduction |
2D/3D |
|
|
Video |
||
|
Max. Resolution |
2592×1520 |
|
|
Video Compression |
H.265, H.264, MJPEG |
|
|
Frame Rate |
4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps |
|
|
Video Streaming |
Triple streams |
|
|
ROI |
Supported |
|
|
HLC |
Supported |
|
|
Evaluative Metering |
Supported |
|
|
OSD |
Up to 8 OSDs |
|
|
Privacy Mask |
Supported |
|
|
Smart |
||
|
Behavior Detection |
Intrusion, crossing line, motion detection |
|
|
Exception Detection |
Audio detection |
|
|
Intelligent Identification |
Face detection |
|
|
Statistical Analysis |
People counting |
|
|
Audio |
||
|
Audio Compression |
G.711 |
|
|
Two-way Audio |
Supported |
|
|
Storage |
||
|
Edge Storage |
Built-in 32 GB eMMC |
|
|
Network |
||
|
Protocol |
L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x |
|
|
Compatibility |
ONVIF, API |
|
|
Structure |
||
|
Pan Range |
250° |
|
|
Pan Speed |
0.1°/s ~ 15°/s |
|
|
Preset speed: 15°/s |
||
|
Tilt Range |
-50° ~ 50° |
|
|
Tilt Speed |
0.1°/s ~5°/s |
|
|
Preset speed: 5°/s |
||
|
Number of Presets |
400 |
|
|
Patrol |
Up to 16 patrols, up to 32 presets per patrol Note: The total number of patrols and patterns is 16. |
|
|
Interface |
||
|
Audio I/O |
3.5 mm connector |
|
|
Input: impedance 35 kΩ; amplitude 2 V [p-p] |
||
|
Output: impedance 600 Ω; amplitude 2 V [p-p] |
||
|
Alarm I/O |
2 / 1 |
|
|
Network |
10M/100M adaptive Ethernet |
|
|
General |
||
|
Power |
12 V DC±25%, PoE (IEEE802.3at) |
|
|
Power consumption: Max. 17.23 W |
||
|
Dimensions |
357 mm × 106 mm × 194 mm (14.1" × 4.2" × 7.7") |
|
|
Weight |
1.16 kg (2.6 lb) |
|
|
Working Environment |
–35°C to +60°C (-31°F to 140°F), ≤ 95% RH |
|
|
Ingress Protection |
IP66 |
|
