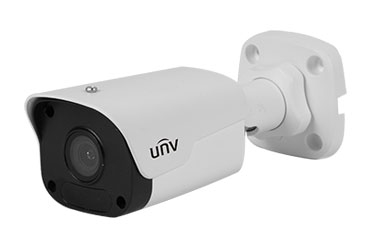

4MP Mini Fixed Bullet Network Camera

P/N: IPC2124LR3-PF40(60)

(0) Bình luận

Thông tin chung:

• 1/3" progressive scan,CMOS
• Up to 2592x1520 resolution,20fps
• Smart IR,up to 30m IR distance
• H.265,ONVIF
• 3D DNR,Corridor Mode,ROI
• DC12V,PoE.Wide voltage range of ±25%
• IP66

Giá tham khảo
11.000.000 đ

0909.039.539

Chia sẻ

Optics

Day/night functionality

Smart IR , up to 30 m (98 ft) IR distance

Optical glass window with higher light transmittance

IR anti-reflection window to increase the infrared transmittance

3D DNR (Digital Noise Reduction)

Compression

H.265, H.264, MJPEG

Triple streams

9:16 corridor format

Network

ONVIF Conformance

Structure

Wide temperature range: -30°C to 60°C (-22°F to 140°F)

Wide voltage range of ±25%

IP66

	IPC2124LR3-PF40	IPC2124LR3-PF60
Camera
Sensor	1/3", 4.0 megapixel, progressive scan, CMOS
Lens	4.0mm@F1.8	6.0mm@F1.8
Angle of View(H)	76.8°	49.4°
Shutter	Auto/Manual, 1/6~1/100000 s
Min. Illumination	Colour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on
IR Range	Up to 30m (98 ft) IR range
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>52dB
WDR	Digital
Noise Reduction	2D/3D
Video
Max. Resolution	2592x1520
Video Compression	H.265, H.264, MJPEG
Frame Rate	4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps
Video Streaming	Triple
9:16 Corridor Mode	Supported
ROI	Supported
HLC	Supported
Evaluative Metering	Supported
OSD	Up to 8 OSDs
Motion Detection	Up to 4 areas
Privacy Mask	Up to 8 areas
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
Compatible Integration	ONVIF, API
Interface
Network	1 RJ45 10M/100M Base-TX Ethernet
General
Power	12 V DC, or PoE (IEEE802.3 af)
	Power consumption: Max 5.0 W
Dimensions (L × W × H)	157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight	0.25 kg (0.55 lb)
Working Environment	-30°C ~ +60°C (-22°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection	IP66
