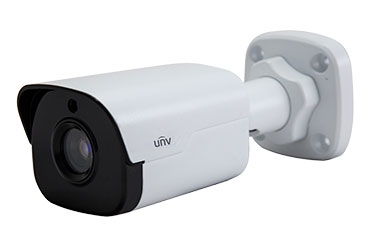

4MP WDR Network IR Mini Bullet Camera

Day/night functionality

Smart IR , up to 30 m (98 ft) IR distance

Up to 120 dB Optical WDR(Wide Dynamic Range)

IR anti-reflection window to increase the infrared transmittance

3D DNR (Digital Noise Reduction)

H.265, H.264, MJPEG

Embedded smart algorithm

Triple streams

9:16 corridor format

ONVIF Conformance

Wide voltage range of ±25%

IP67

	IPC2124SR3-DPF36-16G	IPC2124SR3-DPF60-16G
Camera
Sensor	1/3", 4.0 megapixel, progressive scan, CMOS
Lens	3.6mm@F1.8	6.0mm@F1.8
Angle of View(H)	80.8°	49.4°
Shutter	Auto/Manual, 1/6~1/100000 s
Min. Illumination	Colour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on
IR Range	Up to 30m (98 ft) IR range
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>55dB
WDR	120dB
Noise Reduction	2D/3D
Smart
Behavior Detection	Intrusion, crossing line, motion detection
Intelligent Identification	Face detection, Defocus, Scene Change
Statistical Analysis	People counting
Video
Max. Resolution	2592×1520
Video Compression	H.265, H.264, MJPEG
Frame Rate	4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps
Video Streaming	Triple
9:16 Corridor Mode	Supported
ROI	Supported
HLC	Supported
Evaluative Metering	Supported
OSD	Up to 8 OSDs
Motion Detection	Up to 2 areas
Privacy Mask	Up to 4 areas
Storage
Edge Storage	Built-in 16 GB eMMC
Network
Protocols	L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x
Compatible Integration	ONVIF, API
Interface
Network	1 RJ45 10M/100M Base-TX Ethernet
General
Power	12 V DC, or PoE (IEEE802.3 af)
	Power consumption: Max 6.4 W
Dimensions (L × W × H)	157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight	0.45 kg (0.99 lb)
Working Environment	-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection	IP67
