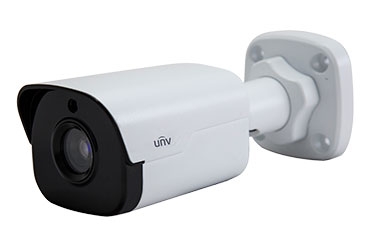

4MP WDR Network IR Mini Bullet Camera

P/N: IPC2124SR3-DPF36(60)(120)

(0) Bình luận

Thông tin chung:

• 1/3" 4MP, progressive scan CMOS
• 2560×1440 resolution, 25fps
• 3.6mm/6mm/12mm optional
• Smart IR, up to 30m IR distance
• H.265, ONVIF
• DC12V, PoE. Wide voltage range of ±25%
• IP67

Giá tham khảo
11.000.000 đ

0909.039.539

Chia sẻ

Optics

Day/night functionality

SmartIR ,up to 30 m (98 ft) IR distance

Optical glass window with higher light transmittance

IR anti-reflection window to increase the infrared transmittance

3D DNR (Digital Noise Reduction)

Compression

H.265, H.264, MJPEG

Embedded smart algorithm

Triple streams

9:16 corridor format

Network

ONVIF Conformance

Structure

Wide temperature range: -35°C to 60°C (-31°F to 140°F)

Wide voltage range of ±25%

IP67

	IPC2124SR3-DPF36	IPC2124SR3-DPF60	IPC2124SR3-DPF120
Camera
Sensor	1/3", 4.0 megapixel, progressive scan, CMOS
Lens	3.6mm@F1.8	6.0mm@F1.8	12.0mm@F1.8
Angle of View(H)	80.8°	49.4°	25°
Shutter	Auto/Manual, 1/6~1/100000 s
Min. Illumination	Colour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on
IR Range	Up to 30m (98 ft) IR range
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>55dB
WDR	120dB
Noise Reduction	2D/3D
Video
Max. Resolution	2592×1520
Video Compression	H.265/H.264/MJPEG
Frame Rate	4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps
Video Streaming	Triple
9:16 Corridor Mode	Supported
ROI	Supported
HLC	Supported
Evaluative Metering	Supported
OSD	Up to 8 OSDs
Motion Detection	Up to 2 areas
Privacy Mask	Up to 4 areas
Smart
Behavior Detection	Intrusion, crossing line, motion detection
Intelligent Identification	Face detection, Defocus, Scene Change
Statistical Analysis	People counting
Network
Protocols	L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
Compatible Integration	ONVIF, API
Interface
Network	1 RJ45 10M/100M Base-TX Ethernet
General
Power	12 V DC, or PoE (IEEE802.3 af)
	Power consumption: Max 6.4 W
Dimensions (L × W × H)	157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight	0.45 kg (0.99 lb)
Working Environment	-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection	IP67
