Thiết bị chuyển mạch switch XS-S1960- 48GT4SFP-H

P/N: XS-S1960- 48GT4SFP-H

(0) Bình luận

Thông tin chung:

Thiết bị Switch quản trị trên Ruijie Cloud,
48 cổng 10/100/1000BASE-T
4 cổng 1G SFP (non-combo);
Tích hợp sẵn Ruijie Cloud, không giới hạn thời gian,

Liên hệ ngay

0909.039.539

Chia sẻ

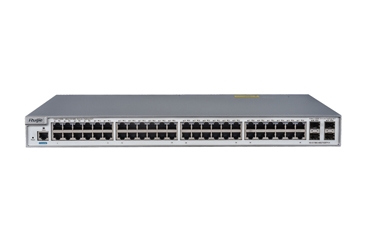

"The front panel of the XS-S1960-48GT4SFP-H full gigabit Ethernet switch provides oneRJ45 Console port, 48 RJ45 10/100/1000BASE-T adaptive Ethernet ports and four SFP ports. Figure 1-4shows the appearance of the XS-S1960-48GT4SFP-H."

Model	XS-S1960-48GT4SFP-H
CPU	Built-in CPU, single-core processor with the clock speed of 1.0GHz
BOOTROM	N/A
Flash Memory	256MB
SDRAM	DDRIII 512MB
SFP Type	Support SFP optical modules. Refer to Appendix B for more information. The supported module type may change at any time. Consult us for the detailed change information.
SFP Port	Support 1000BASE-X Support stack module: GE-SFP-STACK1.6M
Power Supply	= AC input: Rated voltage range: 100V to 240V Maximum voltage range: 90V to 264V Frequency: 50 Hz/60Hz Rated current: 1.5A = HVDC input: Ratedvoltage range: 192V to 290V Rated current range: 0.5Ato 0.78A
Earth Leakage Current	≤3.5mA
EEE	Supported
PoE	Not supported
Power Consumption	≤ 40W
Working Temperature	0ºC to 50ºC (32ºF to 122ºF)
Storage Temperature	-40ºC to 70ºC (-40ºF to 158ºF)
Working Humidity	10% to 90% RH
Storage Humidity	5% to 95% RH
Fan	Support adjustment of fan speed and warning of fan troubles
Temperature Warning	Supported
EMC Standards	GB9254-2008
Safety Standards	GB4943-2011
Dimensions (W x D x H)	440mm x 260mm x 43.6mm
Weight	≤ 4kg
