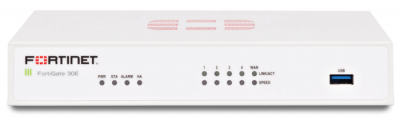

Thiết bị tường lửa Fortinet Fortigate-30E Network Security Appliance

P/N: FG-30E

(0) Bình luận

Thông tin chung:

5 x GE RJ45 ports (Including 1 x WAN port, 4 x Switch ports), Max managed FortiAPs (Total / Tunnel) 2 / 2

Liên hệ ngay

0909.039.539

Chia sẻ

Overview:

The FortiGate/FortiWiFi 30E are compact, cost effective, all-in-one security appliances that deliver Fortinet’s Connected UTM. Ideal for small business, remote, customer premise equipment (CPE) and retail networks, these appliances offer the network security, connectivity and performance you need.

High Performance Network Security

Built on the foundation FortiOS 5, the FortiGate/FortiWiFi 30E series provides an integrated set of essential security technologies to protect all of your applications and data. You get advanced threat protection, including firewall, application control, advanced threat protection, IPS, VPN, and web filtering, all from one device that’s easy to deploy and manage. With our FortiGuard® security subscription services you’ll have automated protection against today’s sophisticated threats.

Advanced Features

The FortiGate/FortiWiFi 30E offers beyond the industry’s best firewall with the latest in Advanced Threat Protection including Sandboxing and anti-bot protection, Feature Select Options for simplifying configurations and deployments, and Contextual Visibility for enhanced reporting and management.

VDOMs on the FortiGate/FortiWiFi 30E let you segment networks to enable guest and employee access, or protect things like cardholder data. You get the flexibility to match your business needs and meet compliance standards like PCI and HIPAA.

Highlights

Firewall Performance	IPS Performance	Interfaces
950 Mbps	600 Mbps	Multiple GE RJ45

Features & Benefits

High performance UTM — firewall, VPN, IPS, application control, web filtering, antivirus, antispam, DLP and more
Runs on FortiOS 5 — the most powerful security operating system in the world delivers more protection for fighting advanced threats and visibility with deep contextual information

Specifications:

	FortiGate 30E	FortiWiFi 30E
Hardware Specifications
GE RJ45 Switch Ports	4	4
GE RJ45 WAN Port	1	1
USB Port	1	1
Console (RJ45)	1	1
Wireless Interface	–	802.11 a/b/g/n
Internal Storage	16 GB
System Performance
Firewall Throughput	950 Mbps
Firewall Latency (64 byte UDP packets)	130 μs
Firewall Throughput (Packets Per Second)	180 Kpps
Concurrent Sessions (TCP)	900,000
New Sessions/Second (TCP)	15,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte packets)	75 Mbps
Gateway-to-Gateway IPsec VPN Tunnels	20
Client-to-Gateway IPsec VPN Tunnels	250
SSL-VPN Throughput	35 Mbps
Concurrent SSL-VPN Users (Recommended Maximum)	80
IPS Throughput (HTTP / Enterprise Mix)	600 / 240 Mbps
SSL Inspection Throughput	200 Mbps
NGFW Throughput	150 Mbps
CAPWAP Throughput	950 Mbps
Virtual Domains (Default / Maximum)	5 / 5
Maximum Number of FortiAPs (Total / Tunnel Mode)	2 / 2
Maximum Number of FortiTokens	20
Maximum Number of Registered FortiClients	200
High Availability Configurations	Active/Active, Active/Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.61 x 8.27 x 5.24
Height x Width x Length (mm)	41 x 210 x 133
Weight	1.982 lbs (0.899 kg) 2.008 lbs (0.911 kg)
Form Factor	Desktop
Environment
Power Required	100–240V AC, 60–50 Hz(External DC Power Adapter)
Maximum Current	100V / 0.6A, 240V / 0.4A
Power Consumption (Average / Maximum)	13 / 15 W	19 / 16 W
Heat Dissipation	52 BTU/h	66 BTU/h
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	20–90% non-condensing
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance
Regulatory Compliance	FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
Certifications
	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
