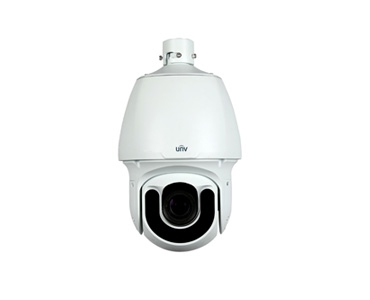

3MP 33x IR Network PTZ Dome Camera

Optics

33x optical zoom

Accurate and fast focusing

Up to 120 dB WDR(Wide Dynamic Range)

Smart IR, up to 200 m (656 ft) IR distance

IR anti-reflection window to increase the infrared transmittance

Compression

H.265, H.264, MJPEG

Embedded smart algorithm

Triple streams

Customized OSD

Network

ONVIF Conformance

Structure

15° Elevation Angle

Innovative snow-removing functionality

More effective heat dissipation system

Intelligent temperature control technology

6 KV surge protection designed for network interface

Camera	IPC6253SR-X33
Sensor	1/2.8", 3megapixel, progressive scan, CMOS
Lens	4.5 ~ 148.5 mm (33x optical zoom)
Angle of View (H)	62.93° (wide) ~3.51° (tele)
Shutter	Auto/Manual; shutter time: 1/6 s ~ 1/100000 s
MinimumIllumination	Colour: 0.02Lux (F1.6,AGC ON) 0 Lux with IR
Iris	Auto/Manual; F1.6 ~ F5.3
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>55dB
WDR	120 dB
Video
Max. Resolution	2048 × 1536
Video Compression	H.265, H.264,MJPEG
Frame Rate	3MP (2048×1536):Max.30 fps; 1080P (1920×1080):Max.60 fps
Video Streaming	Triple
HLC	Supported
Evaluative Metering	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
Digital Zoom	Supported
Smart
Behavior Detection	Intrusion, crossing line, motion detection, Auto tracking
Exception Detection	Audio detection
Intelligent Identification	Face detection
Statistical Analysis	People counting
Audio
Audio Compression	G.711
Two-way audio	Supported
Storage
Edge Storage	Micro SD, up to 128 GB
Network
Protocols	L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
Compatible Integration	ONVIF, API
Pan & Tilt
Pan Range	360° (endless)
Pan Speed	0.1°/s ~ 240°/s
Pan Speed	Preset speed: 300°/s
Tilt Range	–15° ~ +90° (auto reverse)
Tilt Speed	0.1° ~ 160°/s
Tilt Speed	Preset speed: 240°/s
Number of Presets	256
Patrol	Preset patrol, route patrol, recorded patrol
Home Position	Supported
Interface
Audio I/O	Audio cable
	Input: impedance 35 kΩ; amplitude 2 V [p-p]
	Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O	2 / 1
Serial Port	1 RS485
Network	10M/100M Base-TX Ethernet
Video Output	1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
General
Power	24 V AC (Default), 24 V DC
Power	Power consumption: 11~47W
Dimensions(ØxH)	Ø227x359.4 mm (Ø8.9” x 14.2”)
Weight	5.5kg (12.1lb)
Working Environment	–40°C ~ +70°C (-40°F ~ 158°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection	IP66
