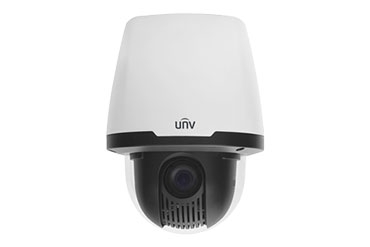

2MP 22x Indoor Network PTZ Dome Camera

IPC6222EI-X22UP-C

Camera

Sensor

1/2.8", 2megapixel, progressive scan, CMOS

Lens

5.2 ~ 114.4mm (22x optical zoom)

Angle of View (H)

55.9° (wide) ~ 3.4° (tele)

Shutter

Auto/Manual; shutter time: 1/6 s ~ 1/100000 s

Minimum Illumination

Colour: 0.002 lux (F1.5, AGC ON)

B/W: 0.0002 lux(F1.5, AGC ON)

Iris

Auto/Manual; F1.5 ~ F3.0

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>52dB

WDR

True WDR (up to 120 dB)

Video

Max. Resolution

1920 × 1080

Video Compression

H.265, H.264, MJPEG

Frame Rate

1080P (1920×1080):Max.30 fps; 720P (1280×720):Max.30 fps; D1 (720×576):Max.8 fps

Video Streaming

Triple

HLC

Supported

Evaluative Metering

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

Digital Zoom

Supported

Smart

Behavior Detection

Intrusion, crossing line, motion detection

Exception Detection

Audio detection

Intelligent Identification

Face detection

Statistical Analysis

People counting

Audio

Audio Compression

G.711

Two-way audio

Supported

Storage

Edge Storage

Micro SD, up to 128 GB

Network

Protocols

L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP 802.1x

Compatible Integration

ONVIF, API

Pan & Tilt

Pan Range

360° (endless)

Pan Speed

0.1°/s ~ 400°/s

Preset speed:540°/s

Tilt Range

–20° ~ +90° (auto reverse)

Tilt Speed

0.1° ~ 240°/s

Preset speed: 400°/s

Number of Presets

256

Patrol

Preset patrol, route patrol, recorded patrol

Home Position

Supported

Interface

Audio I/O

Audio cable

1 Input: impedance 35 kΩ; amplitude 2 V [p-p]

1 Output: impedance 600 Ω; amplitude 2 V [p-p]

Alarm I/O

2/ 1

Serial Port

1 RS485

Network

10M/100M Base-TX Ethernet

Video Output

1 BNC, impedance 75 Ω; amplitude 1 V [p-p]

General

Power

24 V AC, 24 V DC, PoE (IEEE802.3 at)

Power consumption: 8~ 20W

Dimensions(ØxH)

Ø195 x 263 mm (Ø7.7” x 10.4”)

Weight

4.2 kg (9.3 lb)

Working Environment

–20°C ~ +50°C (-4°F ~ 122°F), Humidity ≤ 95% RH(non-condensing)

Vandal Resistant

IK10
