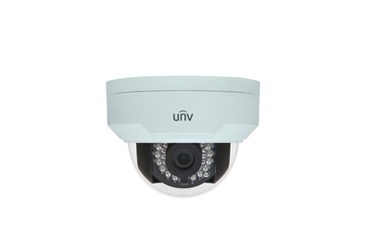

4MP WDR Vandal-resistant Network IR Fixed Dome Camera

P/N: IPC324ER3-DVPF28(36)(60)

(0) Bình luận

Thông tin chung:

• 1/3" progressive scan CMOS
• 2560 x 1440 resolution,25fps
• 2.8mm/3.6mm/6mm optional
• Smart IR, up to 30m IR distance
• H.265, 3D DNR, ROI, 9:16 corridor mode, ONVIF
• DC12V, PoE. Wide voltage range of ±25%
• IP67, IK10

Giá tham khảo
11.000.000 đ

0909.039.539

Chia sẻ

Optics

Day/night functionality

Smart IR, up to 30 m (98 ft) IR distance

Up to 120 dB WDR (Wide Dynamic Range)

3D DNR (Digital Noise Reduction)

Compression

H.265, H.264, MJPEG

Embedded smart algorithm

ROI (Region of Interest)

Customized OSD

Network

ONVIF Conformance

Structure

Wide temperature range: -35°C to 60°C (-31°F to 140°F)

Wide input voltage range of ±25%

IK10 vandal resistant

IP67

	IPC324ER3-DVPF28	IPC324ER3-DVPF36	IPC324ER3-DVPF60
Camera
Sensor	1/3", 4 megapixel, progressive scan CMOS
Lens	2.8 mm@F2.0	3.6 mm@F2.0	6.0 mm@F2.0
Angle of View (H)	101.8°	80.8°	49.4
Shutter	Auto/Manual, 1/6~1/100000 s
Min. Illumination	Colour: 0.02 Lux (F2.0, AGC ON) 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>55 dB
WDR	120 dB
Video
Max. Resolution	2592 × 1520
Video Compression	H.265, H.264,MJPEG
Frame Rate	4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps
Video Streaming	Triple
9:16 Corridor Mode	Supported
ROI	Supported
Evaluative Metering	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
Smart
Behavior Detection	Intrusion, crossing line, motion detection
Exception Detection	Audio detection
Intelligent Identification	Face detection, Defocus, Scene Change
Statistical Analysis	People counting
Audio
Audio Compression	G.711
Two-way audio	Supported
Storage
Edge Storage	Micro SD, up to 128 GB
Network
Protocols	L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x
Compatible Integration	ONVIF,API
Interface
Audio I/O	Input: impedance 35 kΩ; amplitude 2 V [p-p]
	Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O	1/ 1
Network	10M/100M Base-TX Ethernet
General
Power	12 V DC, or PoE (IEEE802.3 af)
	Power consumption: Max 5.5W
Dimensions (Ø x H)	Φ108.5 x 81 mm (Ø4.28” x 3.2”)
Weight	0.45 kg (0.99 lb)
Working Environment	-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection	IP67
Vandal Resistant	IK10
