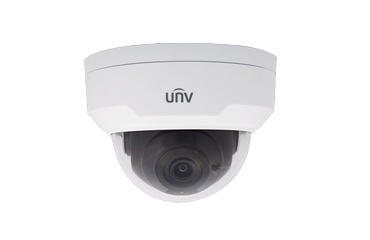

2MP Vandal-resistant Fixed Dome Network Camera

P/N: IPC322SR3-VSPF28(40)-C

(0) Bình luận

Thông tin chung:

• 1/2.9" progressive scan CMOS
• Up to 1920×1080 resolution,30fps
• 2.8mm/4mm optional
• H.265, 3D DNR, ROI, 9:16 corridor mode, ONVIF
• Smart IR, up to 30m IR distance
• DC12V, PoE. Wide voltage range of ±25%
• IP67, IK10

Liên hệ ngay

0909.039.539

Chia sẻ

Optics

Day/night functionality

Smart IR, up to 30 m (98 ft) IR distance

Car-grade LEDs, brighter and uniform light compensation

3D DNR (Digital Noise Reduction)

Compression

H.265, H.264, MJPEG

Embedded smart algorithm

Triple streams

9:16 corridor mode

Network

ONVIF Conformance

Structure

Wide temperature range: -35°C to 60°C (-31°F to 140°F)

Wide input voltage range of ±25%

2-Axis

IP67

IPC322SR3-VSPF28-C	IPC322SR3-VSPF40-C
Camera
Sensor	1/2.9", 2 megapixel, progressive scan CMOS
Lens	2.8 mm@F2.2	4.0 mm@F2.2
Angle of View (H)	105.2°	80.6°
Shutter	Auto/Manual, 1/6~1/100000 s
Min. Illumination	Colour: 0.2 Lux (F2.2, AGC ON) 0 Lux with IR
IR Range	Up to 30m (98 ft) IR range
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>52dB
WDR	Supported
Noise Reduction	2D/3D
Video
Max. Resolution	1920 × 1080
Video Compression	H.265, H.264,MJPEG
Frame Rate	1080P (19201080): Max. 30 fps; 720P (1280720): Max. 30 fps; D1 (720×576): Max. 8 fps
Video Streaming	Triple
9:16 Corridor Mode	Supported
Evaluative Metering	Supported
ROI	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
Smart
Behavior Detection	Intrusion, crossing line, motion detection
Intelligent Identification	Face detection, Defocus, Scene Change
Statistical Analysis	People counting
Storage
Edge Storage	Micro SD, up to 128 GB
Network
Protocols	L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
Compatible Integration	ONVIF,API
Interface
Network	10M/100M Base-TX Ethernet
General
Power	12 V DC, or PoE (IEEE802.3 af)
	Power consumption: Max 5.5W
Dimensions (Ø x H)	Φ108.5 x 81 mm (Ø4.28” x 3.2”)
Weight	0.45 kg (0.99 lb)
Working Environment	-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection	IP67
