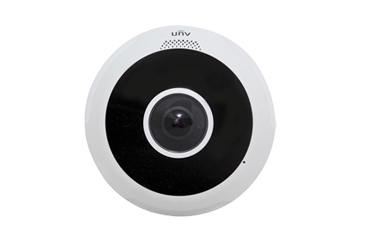

4K Ultra HD Vandal-resistant Fisheye Fixed Dome Camera

P/N: IPC868ER-VF18

(0) Bình luận

Thông tin chung:

• 1/1.7" progressive scan CMOS
• 4K, Max. 4000 * 3000 resolution
• Fisheye, panoramic and PTZ view
• Smart IR, up to 20m IR distance
• 3D DNR, ROI, ONVIF
• DC12V, PoE. Wide voltage range of ±25%
• IP66, IK10

Giá tham khảo
11.000.000 đ

0909.039.539

Chia sẻ

Optics

Ultra wide angle lens, 360°panoramic image

Embedded infrared light, 360°fill-in light, Up to 20 m (65 ft) IR distance

3D DNR (Digital Noise Reduction)

Compression

4K, Max. 4000 * 3000 resolution

Built-in microphone & speaker, two-way talk supported

Sextuple streams

ROI (Region of Interest)

Distortion correction supported

Network

ONVIF Conformance

Structure

Support PoE power supply

Wide temperature range: -30°C to 60°C (-22°F to 140°F)

Wide voltage range of ±25%

IK10

IP66

Camera	IPC868ER-VF18
Image sensor	1/1.7", 12 megapixel, progressive scan, CMOS
Lens	1.8mm@ F1.6
Shutter	Auto/Manual，shutter time：1/6 s ~1/8000 s
Minimum Illumination	Colour: 0.06 Lux (F1.6, AGC ON) 0 Lux with IR
Day / Night	IR-cut filter for day & night function
S/N Ratio	>55dB
WDR	Digital WDR
Video
Compression	H.264
Frame Rate	12MP (40003000): Max.20fps; 4K (30083000): Max.25fps
ROI(Region of Interest)	Supported
Maximum Streams	Sextuple streams (1 fisheye view, 1 panoramic view, 4 PTZ view)
Evaluative Metering	Supported
OSD	Up to 8 OSD
Privacy Mask	Supported
Audio
Audio Compression	G.711
Two-way audio	Supported
Storage
Edge Storage	Micro SD, up to 128GB
Network
Protocols	L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, SIP, QoS
Compatible Integration	ONVIF, API
Interface
Audio I/O	Audio interface
	Input: impedance 35 kΩ; amplitude 2 V [p-p]
	Output: impedance 600 Ω; amplitude 2 V [p-p]
	1 built-in Microphone & 1 built-in Speaker
Alarm I/O	2 / 1
Alarm I/O	Multiple Alarm linkage editable
Serial	1 channel RS485 interface
Network	10M/100M Base-TX Auto-adaptive Ethernet
Video Output	1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
General
Power	DC12V±25%, PoE（IEEE802.3at）
Power	Power consumption: Max. 21 W
Dimensions (Ø x H)	Φ149mm x 51.5mm (Φ5.87” x 2.03”)
Weight	0.5kg(1.1lb)
Working Environment	-30℃~60℃(-22°F ~ 140°F), Humidity ≤ 95% RH
Ingress Protection	IP66
Vandal Resistant	IK10
