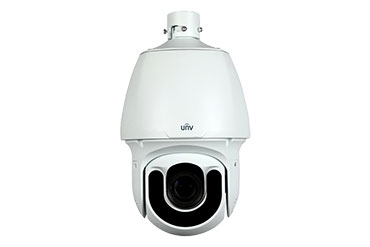

4KUltra-HD Network IR PTZ Dome Camera

P/N: IPC6258SR-X22P

(0) Bình luận

Thông tin chung:

• 1/1.7" progressive scan, CMOS
• Up to 4000×3000 resolution,20fps
• 22x optical zoom(6.5~143mm)
• Smart IR, more than 200m IR distance
• Alarm I/O, Audio I/O
• H.265, ONVIF
• All-weather design, IP66, –40°C ~ +70°C
• AC24V, DC24V, 8~52.5W

Giá tham khảo
11.000.000 đ

0909.039.539

Chia sẻ

Optics

22X Optical Zoom

Fifth-generation infrared technology, more than 200m (656 ft) IR distance

IR anti-reflection window to increase the infrared transmittance

Optical glass window with higher light transmittance

Smart IR

EIS (Electronic Image Stabilization)

Compression

12 Megapixel image

H.265, H.264, MJPEG

Embedded smart algorithm

Triple streams

Customized OSD

Network

ONVIF Conformance

Structure

Innovative snow-removing functionality

Intelligent temperature control technology

More effective heat dissipation system

6 KV surge protection designed for network interface

Camera	IPC6258SR-X22P
Sensor	1/1.7" progressive scan, 12megapixel, CMOS
Lens	6.5~ 143 mm (22x optical zoom)
Angle of View (H)	56.7° (wide) ~ 3.07° (tele)
Shutter	Auto/Manual, shutter time: 1/6 s ~ 1/100000 s
Minimum Illumination	Colour: 0.06 lux (F1.5,AGC ON) 0 lux with IR
Iris	Auto/Manual, F1.5 ~ F3.4
Day/Night	IR-cut filter with auto switch (ICR)
S/N	>55 dB
Video
Video Compression	H.265, H.264, MJPEG
Frame Rate	12MP (4000×3000): Max. 20 fps; 4K (3840×2160): Max. 30 fps
Video Streaming	Triple
HLC	Supported
Evaluative Metering	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
Digital Zoom	Supported
Smart
Behavior Detection	Intrusion, crossing line, motion detection
Exception Detection	Audio detection
Intelligent Identification	Face detection
Statistical Analysis	People counting
Audio
Audio Compression	G.711
Two-way Audio	Supported
Storage
Edge Storage	Micro SD, up to 128 GB
Network
Protocols	L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x
Compatible Integration	ONVIF, API
Pan & Tilt
Pan Range	360°
Pan Speed	0.1°/s ~ 240°/s
Pan Speed	Preset speed: 300°/s
Tilt Range	–15° ~ +90° (auto reverse)
Tilt Speed	0.1° ~ 160°/s
Tilt Speed	Preset speed: 240°/s
Number of Presets	256
Patrol	Preset patrol, route patrol, recorded patrol
Home Position	Supported
Interface
Audio I/O	Audio cable
	1 Input: impedance 35 kΩ; amplitude 2 V [p-p]
	1 Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O	2 / 1
Serial Port	1 RS485
Network	1 RJ45 10M/100M Base-TX Ethernet
Video Output	1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
General
Power	24 V AC±25% (Default), 24 V DC±25%, PoE(PSE Required)
Power	Power consumption: 8~52.5W
Dimensions (Ø x H)	Ø227x359.4 mm (Ø8.9” x 14.2”)
Weight	5.5 kg (12.1 lb)
Working Environment	–40°C ~ +70°C (-49°F ~ 158°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection	IP66
