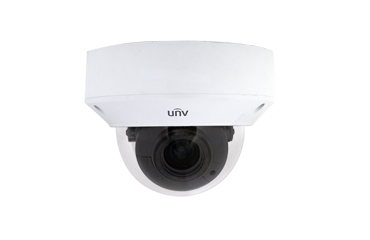

4K WDR Vandal-resistant Vari-focal Dome Network Camera

Camera

IPC3238ER3-DVZ

Sensor

1/2.5", 8 megapixel, progressive scan CMOS

Lens

2.8~12 mm@F1.6

Angle of View (H)

110.0° (wide) ~36° (tele)

Zoom/Focus

4X Optical Zoom / Auto Focus

Shutter

Auto/Manual, 1/6~1/100000s

Min. Illumination

Colour: 0.02 Lux (F1.6, AGC ON)

0Lux with IR

IR Range

Smart-IR, up to 30m (98 ft) IR range

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>55dB

WDR

True WDR 120dB

Video

Max. Resolution

3840×2160

Video Compression

H.265,H.264,MJPEG

Frame Rate

4K (3840×2160): Max.30 fps; 1080P (1920×1080): Max. 30 fps

Video Streaming

Triple

9:16 Corridor Mode

Supported

ROI

Supported

Evaluative Metering

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

Smart

Behavior Detection

Intrusion, crossing line, motion detection

Exception Detection

Audio detection

Intelligent Identification

Face detection, Defocus, Scene Change

Statistical Analysis

People counting

Audio

Audio Compression

G.711

Two-way audio

Supported

Storage

Edge Storage

Micro SD, up to 128 GB

Network

Protocols

L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x

Compatible Integration

ONVIF, API

Interface

Audio I/O

Audio cable

Input: impedance 35 kΩ; amplitude 2 V [p-p]

Output: impedance 600 Ω; amplitude 2 V [p-p]

Alarm I/O

1/ 1

Network

1 RJ45, 10M/100M Base-TX Ethernet

Video Output

1 BNC, impedance 75 Ω; amplitude 1 V [p-p]

Reset Button

Supported

Power Output

DC12V Power Output With PoE

General

Power

12 V DC, or PoE (IEEE802.3 af)

Power consumption: Max.8.7 W

Dimensions (Ø x H)

Φ148 x 111.3 mm (Ø5.8” x 4.4”)

Weight

0.75 kg (1.7 lb)

Working Environment

-40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)

Ingress Protection

IP67

Vandal Resistant

IK10
