Cáp tín hiệu - cáp nguồn (chống cháy) 16AWG ~ 1.5mm2 FIRE ALARM Cable, Unshielded, PVC CMR, PE , LSZH, FACU Series

P/N: FACU1P16

(0) Bình luận

Thông tin chung:

FACS 12-18 AWG part numbers are made up using the table below. The part number starts with FACS to denote that it is a FACS cable. The following number shows the number of pairing and the last 2 numbers signiies the AWG. Any letter behind would describe the sheath type.

Liên hệ ngay

0909.039.539

Chia sẻ

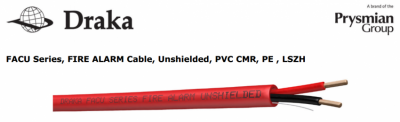

FIRE ALARM Cable, Unshielded, PVC CMR, PE , LSZH, FACU Series

CONSTRUCTION
Conductor	Grade A Bare Copper, Solid
Operating Voltage	300V
Insulation	PVC
Insulation colour	1 - Black, 2 - Red, 3 - White, 4 - Green
Ripcord	Available
Sheath colour	PVC-CMR or LSZH RED ; PE Black
Rated temperature	Up to 75°C

CABLE DIMENSION
Conductor Size	Conductor Diameter (mm)	No of Pairs	Insulation Diameter (MM)	OD (mm)
12 AWG	2.05	1 Pair	0.3	6.34
		2 Pairs		6.85
14 AWG	1.63	1 Pair	0.3	5.55
		2 Pairs		6.52
16 AWG	1.29	1 Pair	0.25	4.56
		2 Pairs		5.25
18 AWG	1.02	1 Pair	0.25	3.98
		2 Pairs		4.61

ORDERING INFORMATION
FACU 12-18 AWG part numbers are made up using the table below. The part number starts with FACU to denote that it is a FACU cable. The following number shows the number of pairing and the last 2 numbers signiï¬es the AWG. Any letter behind would describe the sheath type. Example of a FACU part number- FACU2P12CThe above example describes an FACU cable with 2 pairing, 12 AWG. Sheath type PVC-CMR.

ORDERING INFORMATION

FACU 12-18 AWG part numbers are made up using the table below. The part number starts with FACU to denote that it is a FACU cable. The following number shows the number of pairing and the last 2 numbers signiï¬es the AWG. Any letter behind would describe the sheath type. Example of a FACU part number- FACU2P12CThe above example describes an FACU cable with 2 pairing, 12 AWG. Sheath type PVC-CMR.
