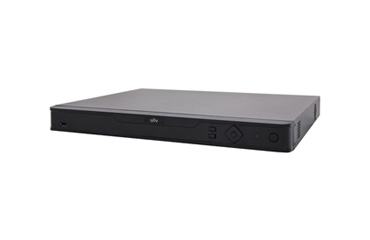

16/32-ch 4-SATA 4K NVR
P/N: NVR304-16E/32E
(0) Bình luận
Thông tin chung:• 16/32-channel input
• Third-party IP cameras supported with ONVIF conformance
• Up to 12 Megapixels resolution recording
• Support H.265/H.264 video formats
• 4 SATA HDDs, Up to 8TB for each HDD
• Support various VCA detection alarm and VCA search
• Support for P2P, UPnP, NTP, DHCP, PPPoE
• Support for mobile client access
11.000.000 đ
l 16/32-channel input
l Third-party IP cameras supported with ONVIF conformance
l Support 2-ch HDMI, 1-ch VGA, HDMI2 at up to 4K(3840x2160) resolution
l Up to 12 Megapixels resolution recording
l Support H.265/H.264 video formats
l Accurate retrieval, instant playback
l 4 SATA HDDs, Up to 8TB for each HDD
l Support various VCA detection alarm and VCA search
l Support for P2P, UPnP, NTP, DHCP, PPPoE
l Support for mobile client access
|
Model |
NVR304-16E |
NVR304-32E |
|
Video/Audio Input |
||
|
IP Video Input |
16-ch |
32-ch |
|
Two-way Audio Input |
1-ch, RCA |
|
|
Network |
||
|
Incoming Bandwidth |
160Mbps |
320Mbps |
|
Outgoing Bandwidth |
320Mbps |
|
|
Remote Users |
128 |
|
|
Video/Audio Output |
||
|
HDMI/VGA Output |
HDMI1/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI2: 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
|
|
Recording Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
|
Audio Output |
1-ch, RCA |
|
|
Synchronous Playback |
16-ch |
|
|
Decoding |
||
|
Compression |
H.265/H.264 |
|
|
Live view/ Playback |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
|
Capability |
4 x 12MP@20, 4 x 4K@30, 8 x 4MP@20, 16 x 1080p@25, 32 x 720p@25 |
|
|
Hard Disk |
||
|
SATA |
4 SATA interfaces |
|
|
Capacity |
up to 8TB for each HDD |
|
|
External Interface |
||
|
Network Interface |
2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interfaces |
|
|
Serial Interface |
1 x RS485 |
|
|
USB Interface |
Front panel: 1 x USB2.0 Rear panel: 1 x USB2.0, 1 x USB3.0 |
|
|
Alarm In |
16-ch |
|
|
Alarm Out |
4-ch |
|
|
General |
||
|
Power Supply |
12V DC |
|
|
Consumption ( without HDD ) |
≤ 12 W |
|
|
Working Temperature |
-10°C ~ + 55°C ( +14°F ~ +131°F ) |
|
|
Working Humidity |
10% ~ 90% |
|
|
Dimensions |
44 × 440 × 344mm ( 1.7" × 17.3" × 13.5" ) |
|
|
Weight ( without HDD ) |
≤ 3.14 Kg ( 6.92 lb ) |
|
