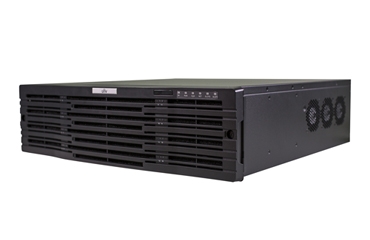

Network Video Recorder
P/N: NVR516 Series
(0) Bình luận
Thông tin chung:• 32/64/128-channel input
• Up to 12 Megapixels resolution recording
• Support H.265/H.264 video formats
• Accurate retrieval, instant playback
• 16 SATA HDDs, Up to 8TB for each HDD, Hot-Swap
• Support for P2P, UPnP, NTP, DHCP, PPPoE
• Support for mobile client access
11.000.000 đ
l 32/64/128-channel input
l Third-party IP camera supported with ONVIF conformance
l Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
l Up to 12 Megapixels resolution recording
l Support H.265/H.264 video formats
l Accurate retrieval, instant playback
l Redundant power supply optional
l 2 decoding cards optional, up to 12-ch HDMI
l 16 SATA HDDs, Up to 8TB for each HDD, Hot-Swap
l Support RAID 0/1/5/6/10/50/60
l Support 2 miniSAS Interfaces
l Support 12V power output
l Support P2P, UPnP, NTP, DHCP, PPPoE
l Support mobile client access
|
Model |
NVR516-32 |
NVR516-64 |
NVR516-128 |
|
|
Video/Audio Input |
||||
|
IP Video Input |
32-ch |
64-ch |
128-ch |
|
|
Two-way Audio Input |
1-ch, BNC |
|||
|
Network |
||||
|
Incoming Bandwidth |
384Mbps |
384Mbps |
512Mbps |
|
|
Outgoing Bandwidth |
384Mbps |
|||
|
Remote Users |
128 |
|||
|
Video/Audio Output |
||||
|
HDMI/VGA Output |
VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI1： 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI2: 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
|||
|
Recording Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|||
|
Audio Output |
1-ch, BNC |
|||
|
Synchronous Playback |
16-ch |
|||
|
Decoding |
||||
|
Compression |
H.265/H.264 |
|||
|
Live view/Playback |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|||
|
Capability |
4 x 12MP@20, 4 x 4K@30, 16 x 1080p@30, 36 x 720p@30, 64 x D1 |
|||
|
Hard Disk |
||||
|
SATA |
16 SATA interfaces |
|||
|
Capacity |
up to 8TB for each HDD |
|||
|
eSATA |
1 eSATA interface |
|||
|
miniSAS |
2 miniSAS ports |
|||
|
Disk Array |
||||
|
Array Type |
RAID 0/1/5/6/10/50/60 |
|||
|
External Interface |
||||
|
Network Interface |
4 RJ-45 10M/100M/1000M adaptive Ethernet Interface 2 1000M SFP Ethernet Interface |
|||
|
Serial Interface |
1 x RS232, 1 x RS485 |
|||
|
USB Interface |
Rear panel: 4 x USB3.0 |
|||
|
Alarm In |
24-ch |
|||
|
Alarm Out |
8-ch |
|||
|
Decoding Card (optional) |
2 slots (4-ch HDMI or 6-ch HDMI outputs per card) |
|||
|
Power Output |
12V |
|||
|
General |
||||
|
Power Supply |
100 ~ 240V AC |
|||
|
Consumption ( without HDD ) |
≤ 50 W |
|||
|
Working Temperature |
-10°C ~ + 55°C ( +14°F ~ +131°F ) |
|||
|
Working Humidity |
10% ~ 90% |
|||
|
Chassis |
19-inch rack-mounted 3U chassis |
|||
|
Dimensions |
131mm × 482mm ×477mm ( 5.1" × 19.0" × 18.8" ) |
|||
|
Weight ( without HDD ) |
≤ 10 Kg ( 22.05 lb ) |
|||
