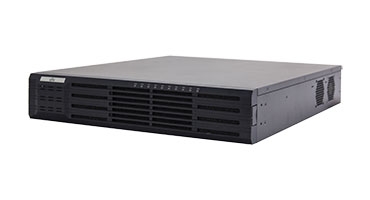

32/64 Channel 8 HDDs RAID NVR
P/N: NVR308-32R/64R-B
(0) Bình luận
Thông tin chung:• 32/64-channel input
• Up to 12 Megapixels resolution recording
• Support H.265/H.264 video formats
• Accurate retrieval, instant playback
• 8 SATA HDDs, Up to 8TB for each HDD
• Support various VCA detection alarm and VCA search
• Dewarping support for fisheye cameras
• Support N+1 Hot spare
• Support for P2P, UPnP, NTP, DHCP, PPPoE
• Support for mobile client access
11.000.000 đ
l 32/64-channel input
l Third-party IP cameras supported with ONVIF conformance
l Support 2-ch HDMI, 1-ch VGA, 1-ch CVBS, HDMI2 at up to 4K(3840x2160) resolution
l Up to 12 Megapixels resolution recording
l Support H.265/H.264 video formats
l Accurate retrieval, instant playback
l Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
l 8 SATA HDDs, Up to 8TB for each HDD
l Support various VCA detection alarm and VCA search
l Dewarping support for fisheye cameras
l Support N+1 Hot spare
l Support for 12V Power output
l Support for P2P, UPnP, NTP, DHCP, PPPoE
l Support for mobile client access
|
Model |
NVR308-32R-B |
NVR308-64R-B |
|
Video/Audio Input |
||
|
IP Video Input |
32-ch |
64-ch |
|
Two-way Audio Input |
1-ch, RCA |
|
|
Network |
||
|
Incoming Bandwidth |
320Mbps |
|
|
Outgoing Bandwidth |
320Mbps |
|
|
Remote Users |
128 |
|
|
Video/Audio Output |
||
|
HDMI/VGA Output |
HDMI1/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI2: 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
|
|
CVBS Output |
1-ch, BNC |
|
|
Recording Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
|
Audio Output |
1-ch, RCA |
|
|
Synchronous Playback |
16-ch |
|
|
Decoding |
||
|
Compression |
H.265/H.264 |
|
|
Live view/ Playback |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
|
Capability |
3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 |
|
|
Hard Disk |
||
|
SATA |
8 SATA interfaces |
|
|
Capacity |
Up to 8TB for each HDD |
|
|
eSATA |
1 eSATA interface |
|
|
Disk array |
||
|
Array type |
RAID 0, 1, 5, 6, 10 |
|
|
External Interface |
||
|
Network Interface |
2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interfaces |
|
|
Serial Interface |
1 x RS232, 1 x RS485 |
|
|
USB Interface |
Rear panel: 2 x USB2.0, 1 x USB3.0 |
|
|
Alarm In |
16-ch |
|
|
Alarm Out |
4-ch |
|
|
General |
||
|
Power Supply |
100 ~ 240 VAC |
|
|
Consumption ( without HDD ) |
≤ 20 W |
|
|
Working Temperature |
-10°C ~ + 55°C ( +14°F ~ +131°F ) |
|
|
Working Humidity |
10% ~ 90% |
|
|
Dimensions |
86mm × 442mm ×531mm ( 3.4" × 17.4" × 19.9" ) |
|
|
Weight ( without HDD ) |
≤ 5.13 Kg (11.31 lb ) |
|
