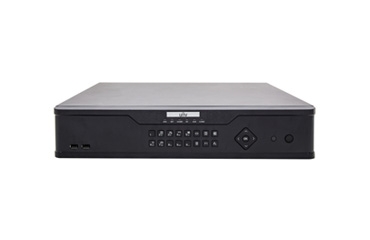

16/32-ch 4-SATA PoE NVR
P/N: NVR304-16EP/32EP
(0) Bình luận
Thông tin chung:• 16/32-channel input
• Third-party IP cameras supported with ONVIF conformance
• Up to 12 Megapixels resolution recording
• Support H.265/H.264 video formats
• Plug & Play with up to 16 independent PoE network interfaces
• 4 SATA HDDs, Up to 8TB for each HDD
• Support various VCA detection alarm and VCA search
• Support for P2P, UPnP, NTP, DHCP, PPPoE
• Support for mobile client access
11.000.000 đ
16/32-channel input
Third-party IP cameras supported with ONVIF conformance
Support 2-ch HDMI, 1-ch VGA, HDMI2 at up to 4K(3840x2160) resolution
Up to 12 Megapixels resolution recording
Support H.265/H.264 video formats
Accurate retrieval, instant playback
4 SATA HDDs, Up to 8TB for each HDD
Support various VCA detection alarm and VCA search
Support for 12V Power output
Plug & Play with up to 16 independent PoE network interfaces
Support for P2P, UPnP, NTP, DHCP, PPPoE
Support for mobile client access
|
Model |
NVR304-16EP |
NVR304-32EP |
|
Video/Audio Input |
||
|
IP Video Input |
16-ch |
32-ch |
|
Two-way Audio Input |
1-ch, RCA |
|
|
Network |
||
|
Incoming Bandwidth |
160Mbps |
320Mbps |
|
Outgoing Bandwidth |
320Mbps |
|
|
Remote Users |
128 |
|
|
Video/Audio Output |
||
|
HDMI/VGA output |
HDMI1/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI2: 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
|
|
Recording Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
|
Audio Output |
1-ch, RCA |
|
|
Synchronous Playback |
16-ch |
|
|
Decoding |
||
|
Compression |
H.265/H.264 |
|
|
Live view/Playback |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
|
Capability |
4 x 12MP@20, 4 x 4K@30, 8 x 4MP@20, 16 x 1080p@25, 32 x 720p@25 |
|
|
Hard Disk |
||
|
SATA |
4 SATA interfaces |
|
|
Capacity |
up to 8TB for each HDD |
|
|
External Interface |
||
|
Network Interface |
1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
|
|
Serial Interface |
1 x RS485 |
|
|
USB Interface |
Front panel: 2 x USB2.0 Rear panel: 1 x USB3.0 |
|
|
Alarm In |
16-ch |
|
|
Alarm Out |
4-ch |
|
|
Power Output |
12 VDC |
|
|
PoE |
||
|
Interface |
16 independent 100 Mbps PoE network interfaces |
|
|
Max Power |
Max 30W for single port Max 200W in total ( 12.5W for each ) |
|
|
Supported Standard |
IEEE 802.3at |
|
|
General |
||
|
Power Supply |
100 ~ 240 VAC |
|
|
Consumption ( without HDD ) |
≤ 20 W |
|
|
Working Temperature |
-10°C ~ + 55°C ( +14°F ~ +131°F ) |
|
|
Working Humidity |
10% ~ 90% |
|
|
Dimensions |
86 × 442 × 425mm (3.4" × 17.4" × 16.7" ) |
|
|
Weight ( without HDD ) |
≤ 5.24 Kg ( 11.55 lb ) |
|
