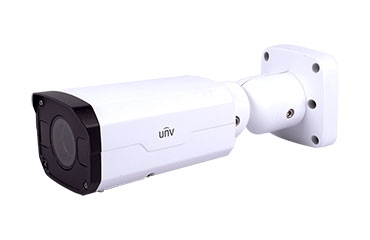

4MP VF Network IR Bullet Camera
P/N: IPC2324EBR-DP
(0) Bình luận
Thông tin chung:• 1/3" progressive scan CMOS
• 2560 x 1440 resolution, 25fps
• 2.8~12mm
• Smart IR, up to 30m IR distance
• H.265, 3D DNR, ROI, 9:16 corridor mode, ONVIF
• DC12V, PoE. Wide voltage range of ±25%
• IP67
11.000.000 đ
Optics
SmartIR, up to 30m (98 ft) IR distance
Up to 120 dB OpticalWDR(Wide Dynamic Range)
3D DNR(Digital Noise Reduction)
Compression
H.265, H.264, MJPEG
Embedded smart algorithm
Triple streams
9:16 corridor mode
Customized OSD
Network
ONVIF Conformance
Structure
Wide temperature range: -35°C to 60°C (-31°F to 140°F)
Wide voltage range of ±25%
IP67
IPC2324EBR-DP |
|
Camera |
|
Sensor |
1/3", 4 megapixel, progressive scan CMOS |
Lens |
2.8~12mm @F1.4 |
Angle of View(H) |
91°~27° |
Zoom/Focus |
Manual |
Shutter |
Auto/Manual, 1/6~1/100000 s |
Min. Illumination |
Colour: 0.02 Lux (F1.4, AGC ON) 0 Lux with IR on |
IR Range |
Up to 30m (98 ft) IR range |
Day/Night |
IR-cut filter with auto switch (ICR) |
S/N |
>55 dB |
WDR |
Optical WDR (up to 120 dB) |
Video |
|
Max. Resolution |
2592 × 1520 |
Video Compression |
H.265, H.264, MJPEG |
Frame Rate |
4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps |
9:16 Corridor Mode |
Supported |
ROI |
Supported |
Video Streaming |
Triple |
HLC |
Supported |
Evaluative Metering |
Supported |
OSD |
Up to 8 OSDs |
Privacy Mask |
Up to 8 areas |
Smart |
|
Behavior Detection |
Intrusion, crossing line, motion detection |
Exception Detection |
Audio detection |
Intelligent Identification |
Face detection, Defocus, Scene Change |
Statistical Analysis |
People counting |
Audio |
|
Audio Compression |
G.711 |
Two-way audio |
Supported |
Storage |
|
Edge Storage |
Micro SD, up to 128 GB |
Network |
|
Protocols |
L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x |
Compatible Integration |
ONVIF, API |
Interface |
|
Audio I/O |
Audio cable |
Input: impedance 35 kΩ; amplitude 2 V [p-p] |
|
Output: impedance 600 Ω; amplitude 2 V [p-p] |
|
Alarm I/O |
1 / 1 |
Network |
10M/100M Base-TX Ethernet |
Video Output |
1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
General |
|
Power |
12 V DC, or PoE (IEEE802.3 af) |
Power consumption: Max 8W |
|
Material |
Cast aluminum |
Dimensions (L × W × H) |
253.4 ×86 ×71.7 mm (9.98” × 3.4” × 2.8”) |
Weight |
0.58kg (1.28lb) |
Working Environment |
-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
Ingress Protection |
IP67 |
